Power Cables with Plastic Insulation up to 1 kV VVGng(A) Available for Import

Power Cables with Plastic Insulation up to 1 kV VVGng(A) for Reliable Electrical Systems

Copper Power Cables 1kV
Manufacturer: GOSTKABEL LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

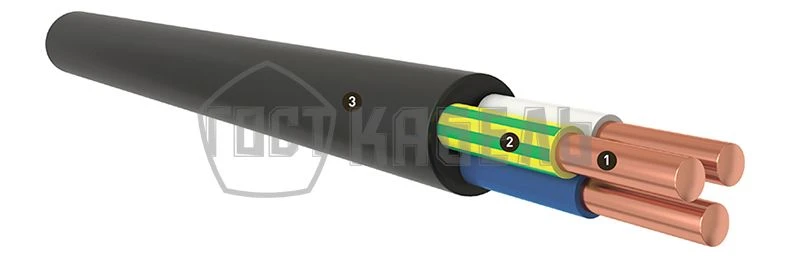

Power cables with plastic insulation for voltage up to 1 kV VVGng(A)-HL

Description

Cable round with copper conductors, with insulation and outer jacket made of PVC plasticate, not spreading combustion in category A. The cable is manufactured for operation in areas with temperate, cold and tropical climates. The cable is designed for operation on land, rivers and lakes at an altitude of up to 4 300 m above sea level. It is used in the air if there is no danger of mechanical damage during operation; for laying in dry or damp premises (tunnels), channels, cable half floors; in mines, collectors, production facilities, partially flooded structures in the presence of environment with weak, medium and high corrosivity; for laying on special cable trestles, on bridges and in blocks.

Specifications

Mark
VVGng(A)
Design
Conducting core, insulation, outer jacket
Sheath material
Polyvinyl chloride plasticate of reduced fire hazard
Insulation material
Polyvinylchloride plasticate with distinctive colouring of reduced fire danger
Cable shape
Round
Core cross section
1,5;2,5;4;6;10;16;25;35;50;70;95;120;150;185;240 mm²
Number of cores
1,2,3,4,5 pcs
Number of wires in the core
1 to 37 pcs
Number of conductive cores
1,2,3,4,5 pcs
Nominal cross-section of conductive cores
1,5;2,5;4;6;10;16;25;35;50;70;95;120;150;185;240 mm²
Laying and installation of cables without preheating is carried out at temperature
at least -15 °C
Long-term permissible core heating temperature during operation
No more than 70 °C
Short circuit duration
No more than 5
Permissible heating temperature of cable cores in overload mode
Not more than 90 °C
Limit temperature of core heating under conditions of short circuit non-flammability
no more than 350 °C
Test alternating voltage with frequency 50 Hz at 0.66 kV
3,5 kV
Maximum AC voltage of frequency 50Hz at 0.66 kV
0,72 kV
Maximum AC voltage of frequency 50Hz at 1 kV
1,2 kV
Size (Number of cores x Cross-section)
1x1.5 to 1x240; 2x1.5 to 2x240; 3x1.5 to 3x240; 4x1.5 to 4x240; 5x1.5 to 5x150
Relative humidity at temperatures up to 35°C
98 %
Rated AC voltage
1 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
