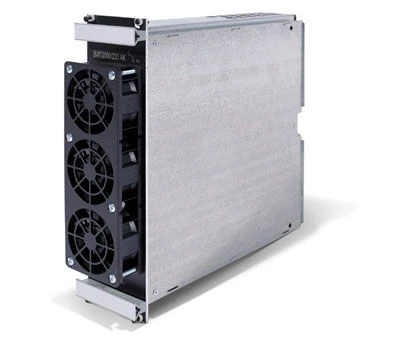

Power Supply Source VIP2000/220 AK for Electronics and Battery Charging

Static Power Converters

Manufacturer: NVP OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The power supply source VIP-2000/220 AK is designed for power supply of radio electronic equipment (REA) and battery charging, converts the input voltage of single-phase AC network with a nominal value of 220 V with frequency 50 Hz or DC network voltage with a nominal value of 220 V into output stabilised unipolar DC voltage with a nominal value of 229 V. In accordance with the control signals received via the CAN interface of the system, the output of the power supply source VIP-2000/220 AK sets the value of the output DC voltage in the range from 195 to 245 V.

Specifications

Ambient air operating temperature range

-5...65 °C

Interface supply input voltage (DC)

19...32 V

Maximum output power, not less than

2000 W

Input voltage (DC)

180...350 V

Input voltage frequency

47...63

Input voltage (AC)

160...260 V

Electrical insulation strength in switchgear and controlgear between control circuits and the case

0.5 kW

Electrical insulation strength in the switchgear and controlgear between output circuits and the housing

1.5 kW

Electrical insulation strength in switchgear and controlgear between input circuits and enclosure, input and output circuits

2 kW

Output voltage ripple from peak to peak, max.

2 V

DC output voltage (at no interface power and 400 W load)

229.5 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
