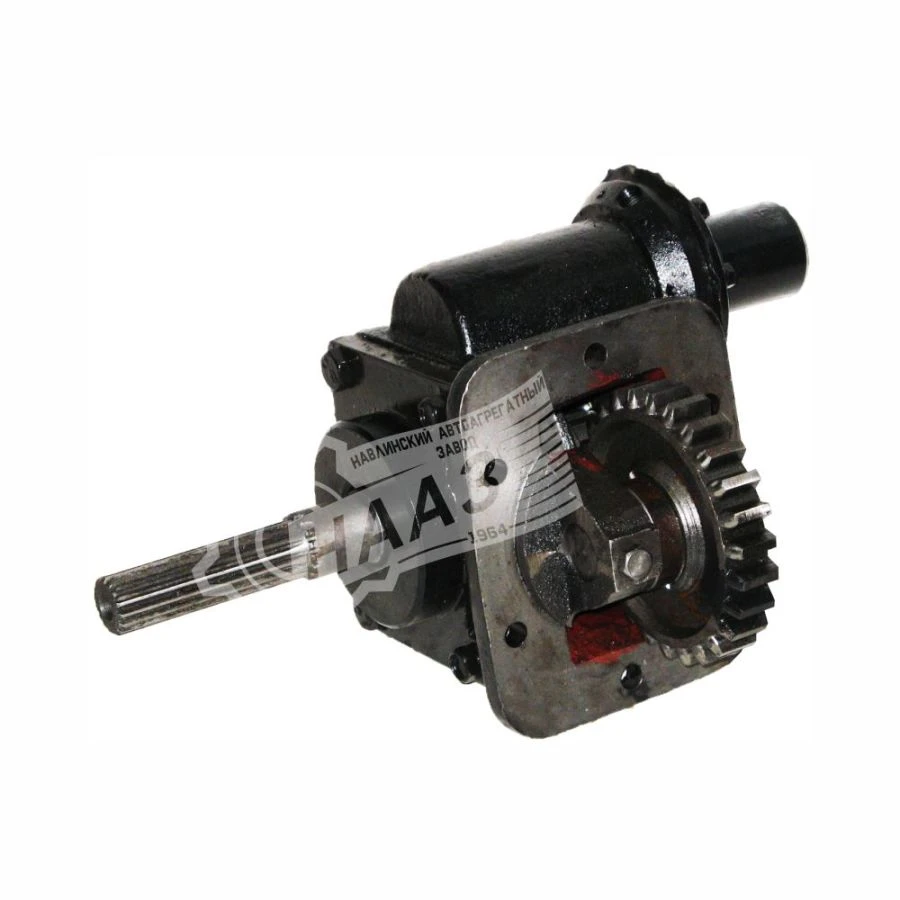

Power Take-Off Box 85.503-4202010-20 for Special Vehicle Applications

The power take-off box (PTO) 85.503-4202010-20 is designed to drive the units of the special vehicle. It is installed on the right side hatch, with a flange forward, gearbox chassis Ural and MAZ with a YaMZ engine. KOM drive - from the power take-off gear of the secondary shaft of the gearbox.Type of KOM - mechanical with a mechanism for switching on the power take-off, acting from the pressure of compressed air pneumatic system of the vehicle chassis.

KOM is designed to drive the units of the special vehicle through the cardan shaft type "Moskvich". Operation is possible at ambient air temperature from minus 45 to plus 50 C, relative humidity up to 98% at temperature plus 25 C, wind speed up to 20 m/s, intensity of precipitation 5 mm/min, air dustiness up to 1.5 g/m.
