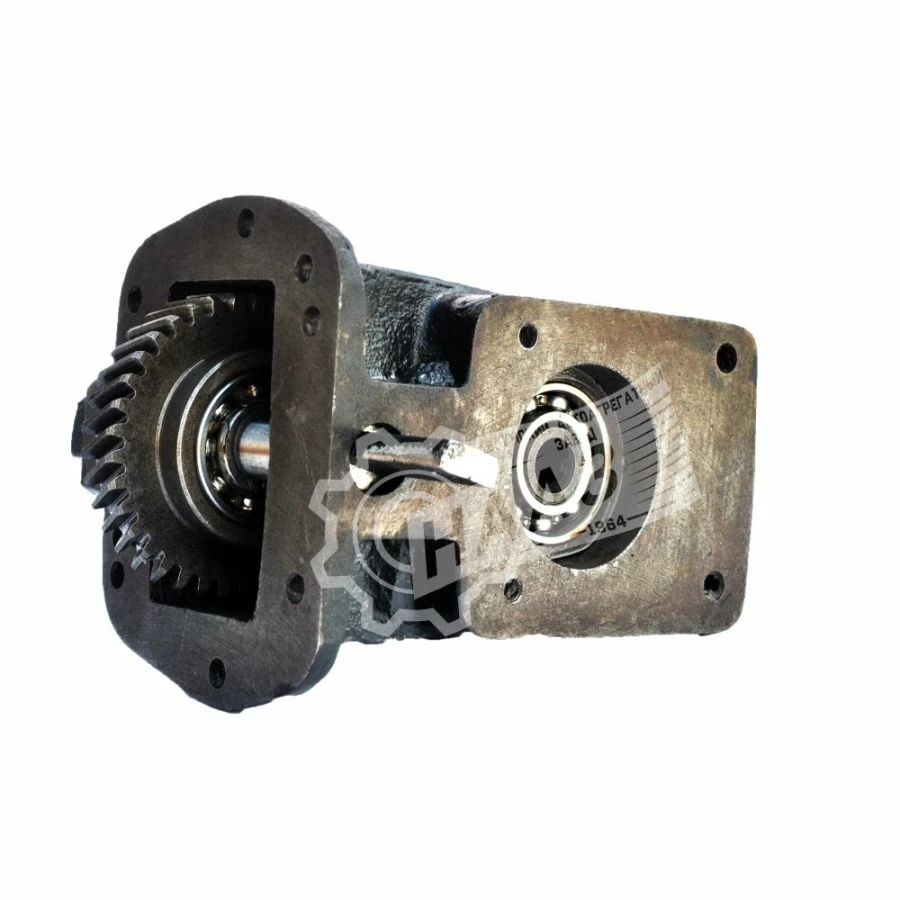

Power Take-Off Box MP-85.82-4202010-20 for GAZEL Vehicle Applications

The power take-off box (PTO) MP 85.82-4202010-20 is installed on the right side hatch of the gearbox of the GAZEL chassis.PTO drive is from the gearbox power take-off pinion.PTO type is mechanical with mechanical engagement. The box is designed to drive the gear pump NSh-10 by means of a spline connection.KOM can be used at ambient air temperature from minus 45 to plus 50 C, relative humidity up to 98% at a temperature of plus 25 C, wind speed up to 20 m/s, intensity of atmospheric precipitation 5 mm/min and air dustiness up to 1.5 g/m.
