Precision Lathe Machine for Turning and Threading 1Н65Г-1

Available for Import

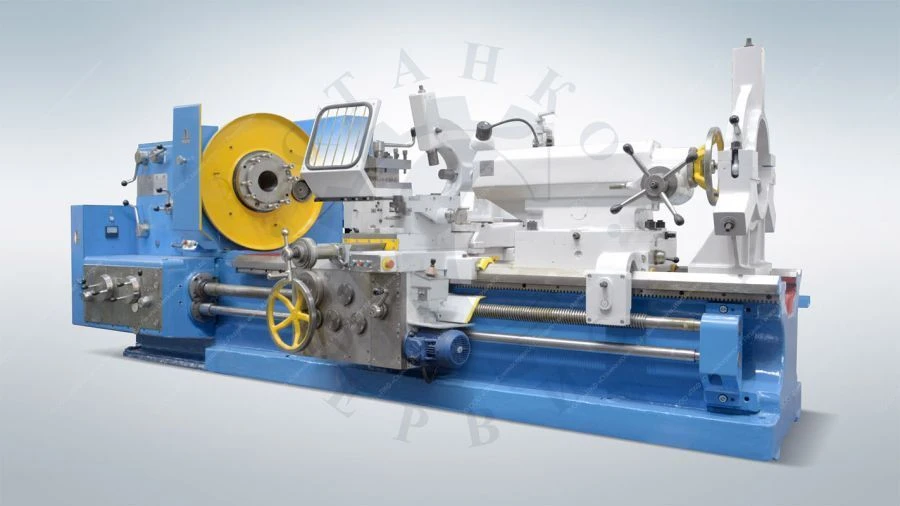

Precision Lathe Machine for Turning and Threading - Model 1Н65Г-1

Manual Metal Lathes

Manufacturer: STANKOSERVIS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Height

10.15 mm

Width

2200 mm

Length

4140 mm

Machine weight

10.15 t

Roughness of the cylindrical surface of the sample product after its finish machining

Ra 2.5 µm

Main motion drive power

22 kW

Highest cutting force Pz

41000

Highest torque on the spindle

9.5 kNm

Speed of rapid transverse movements of the slide

1000 mm/min

Speed of rapid longitudinal movements of the caliper

3000 mm/min

Step limits for machinable modular threads

0.5-24 module

Pitch limits of inch threads to be cut

24-1/4 threads per 1 inch

Step limits of metric threads to be cut

1...96 mm

Maximum lateral movement of the slide

700 mm

Maximum longitudinal movement of the slide

700 mm

Diameter of the cylindrical bore in the spindle

128 mm

Longest workpiece length

1000 mm

Accuracy class of machine tools according to GOST 8-82

Total power of electric motors installed on the machine tool

23.68 kW

Largest diameter of the workpiece to be machined above the bed

1000 mm

Largest diameter of the workpiece to be mounted above the bed

1000 mm

Largest diameter of the workpiece to be mounted and machined above the slide

650 mm

Digital display device

GAP

Spindle speed limits

5...500

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
