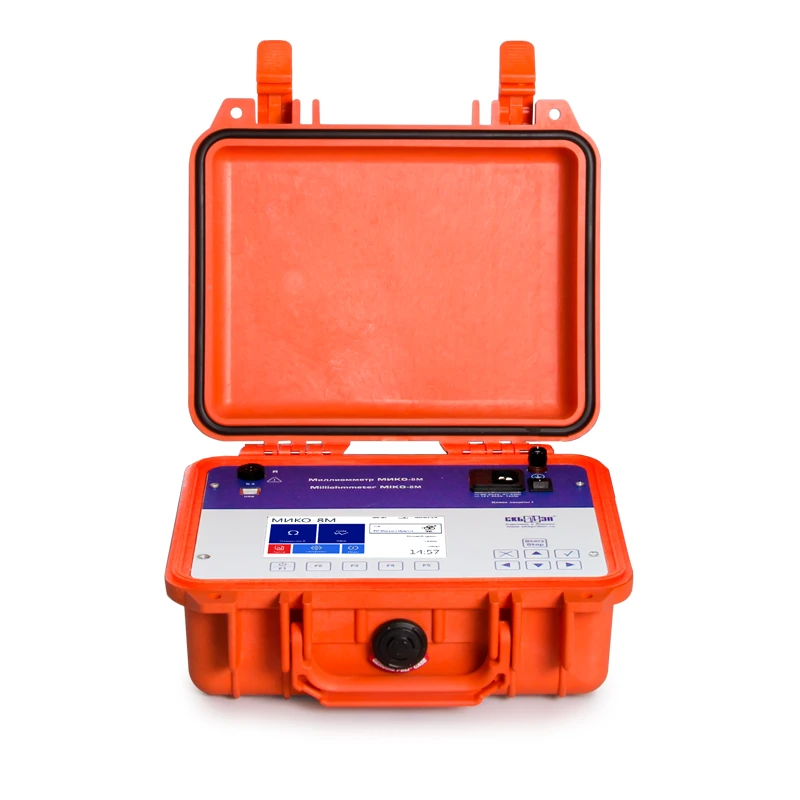

Precision Milliammeter for Low Resistance Measurements MIKO-8M and MIKO-8MA

Available for Import

Precision Milliammeter for Low Resistance Measurements MIKO-8M & MIKO-8MA

Digital Ohmmeters

Manufacturer: SKB EP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Milliometer is designed for measuring electrical resistance in inductive and inductorless circuits in the range of 10 µOhm ÷ 10 kOhm at current strength from 0,001 to 10A.

Special modes that take into account the specific measurement settings of different objects.

Full automation of the measurement process: calculation of the relative deviations of the winding resistance of the three phases to each other; conversion of the linear winding resistance to the resistance of the phase windings, etc.

The DRM test mode (DRM-test) is a mode that allows to carry out an on-load tap-changer with current-limiting resistors without removing the diverter switch box cover. As a result, the device produces an evaluation oscillogram.

Touch screen, non-volatile memory, mains or internal battery power.

The device is powered not only from the mains, but also from an external battery, depending on the modification MIKO-8M or MIKO-8MA.

Specifications

Resistance measurement range

1 ?? ÷ 10 k? ohm

Measuring current range

0,001 ÷ 10 A A

Accuracy

±(0,1%+0,5 ??)

Measuring current range in DRM mode

0,1 ÷ 10 A A

MIKO-8MA: Power supply (built-in battery)

Lithium-ion

MIKO-8MA: Battery charge time

MIKO-8MA: Duration of continuous battery operation

Built-in memory

up to 1,000 measurements

Communication with the MP/PC

Bluetooth / USB cable

MIKO-8MA: Instrument weight

4 kg

MIKO-8MA: Weight of the instrument

2,7 kg

Environmental protection in working position

IP 40

Environmental protection in transport position

IP 67

Temperature range when operating the device

-20 °C to +55 °C °C

Inspection period

3 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
