Premium LED Street Lighting Fixtures MAG41 - 140-360W Power

Premium LED Street and Road Lighting Fixtures MAG41 for Effective Illumination

Manufacturer: INKOTEX LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

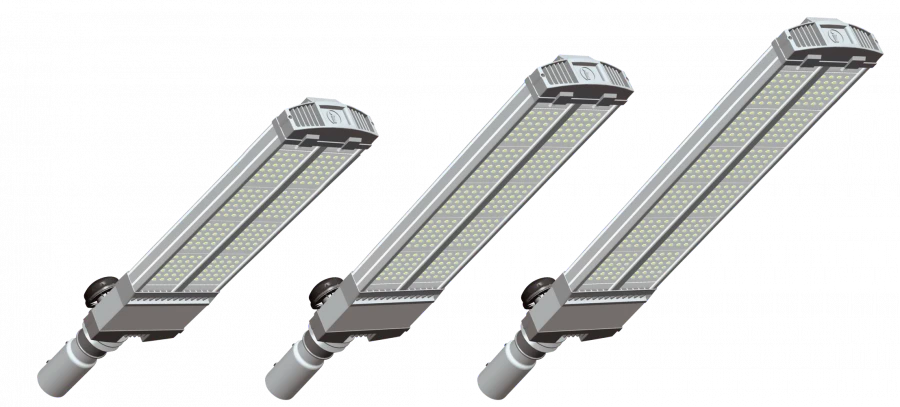

Magistral LED luminaires MAG41 are luminaires from the premium series, designed to illuminate highways and roads of all categories, territories of industrial enterprises, railway stations, sports grounds, etc. In the LED module group lenses play the role of not only secondary optics, but also a protective shell. This allows to remove optical losses from the additional protective glass and eliminate the reduction of light flux due to dusting of the internal cavity of the optical system during operation. Matrix system of LED connection ensures longevity of the luminaire and its operability in case of failure of any LED. The luminaires are installed on cantilever brackets with a pipe diameter of 48 mm or 60 mm or on masts with a pipe diameter of 76 mm. The luminaires are supplied ready for connection of the control system (Ready).

Specifications

Type of product according to PP RF 616
Lighting fixtures and lighting fittings other than those included in other groupings
Power
140...360 W
Power factor
> 0.97
Ripple factor
< 5 %
Luminous flux
24600...59400 lm
Weight
6.8...8 kg
Dimensions
628-1038?205?103 mm
Operating temperature range
-45...50 °C
Degree of protection of the shell
IP66
Electrical safety class
I
