Pressure Sensors Metron-150 for Liquid, Steam, and Gas Measurement Model 150TAR

Available for Import

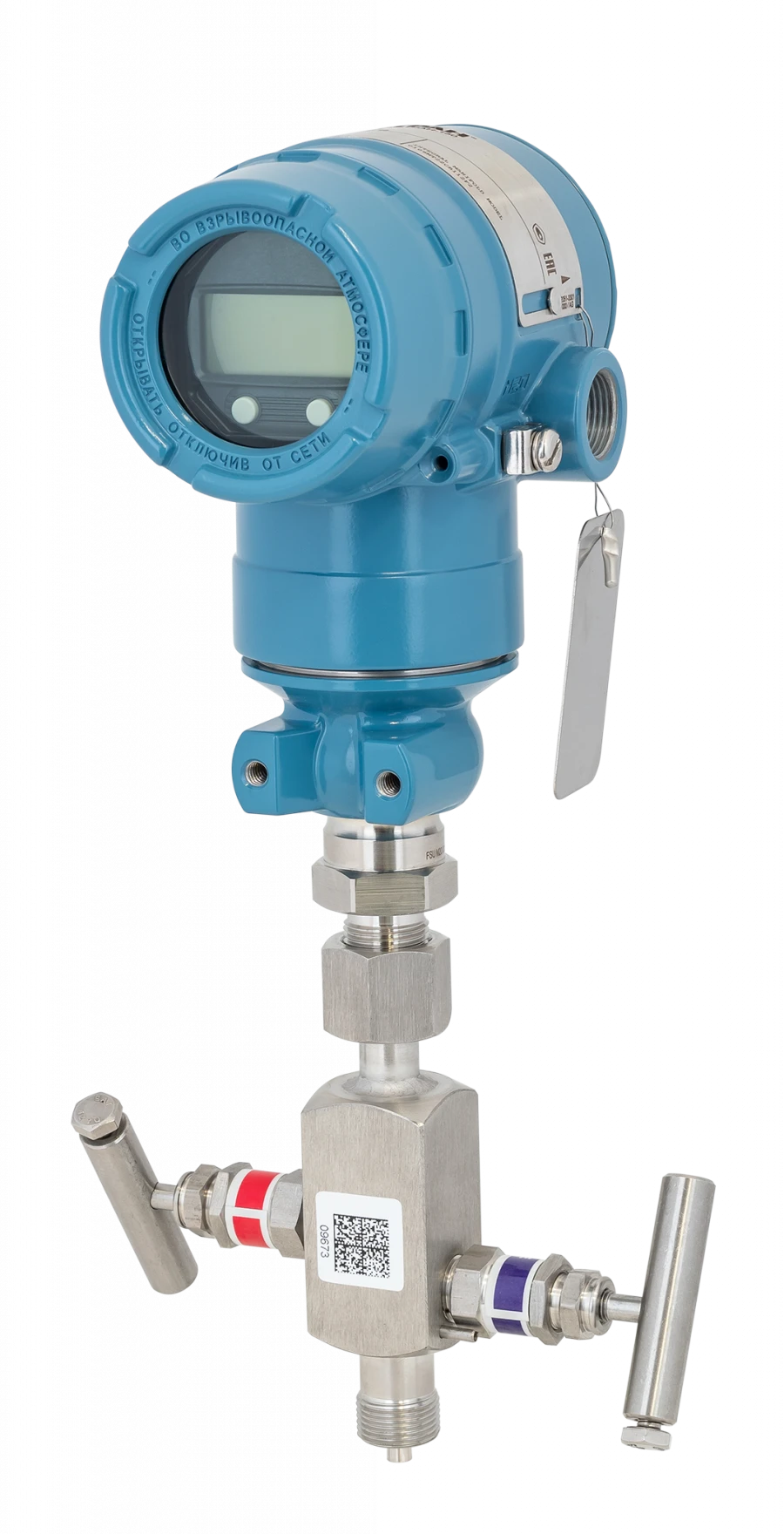

Metron-150 Pressure Sensors for Liquid, Steam, and Gas Measurement (Model 150TAR)

Pressure Measuring Instruments

Manufacturer: METRAN OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for absolute pressure measurements of liquid, steam and gas. The measuring mechanism of sensors works on the principle of strain-resistive effect. The sensors can be connected to the process by means of socket or flange mounting. The design of the sensors allows the sensors to be used in assemblies with valve blocks of various designs

Specifications

Execution

General industrial, intrinsically safe, explosion-proof, combined

Dustproof

IP66, IP68

Output signal

Analog DC output signal 4-20 (0-5) mA and/or into digital output signal in NART protocol standard

Warranty period

warranty storage period - 24 months from the date of sensor manufacturing. Warranty period of operation - 36 months from the date of their commissioning. Option WR5: warranty period of operation of the sensor - 5 years from the date of their commissioning

Absolute pressure (AP), UPI

68.947 MPa

Range reconfiguration depth

1:100; 1:50

Basic reduced error

0.075; 0.1 (optional: 0.2; 0.5; 0.065) %

Climatic designs

-40...85 °C

EMC

IV version group according to GOST 32137; GOST R IEC 61326-1

Inspection interval

5 year
