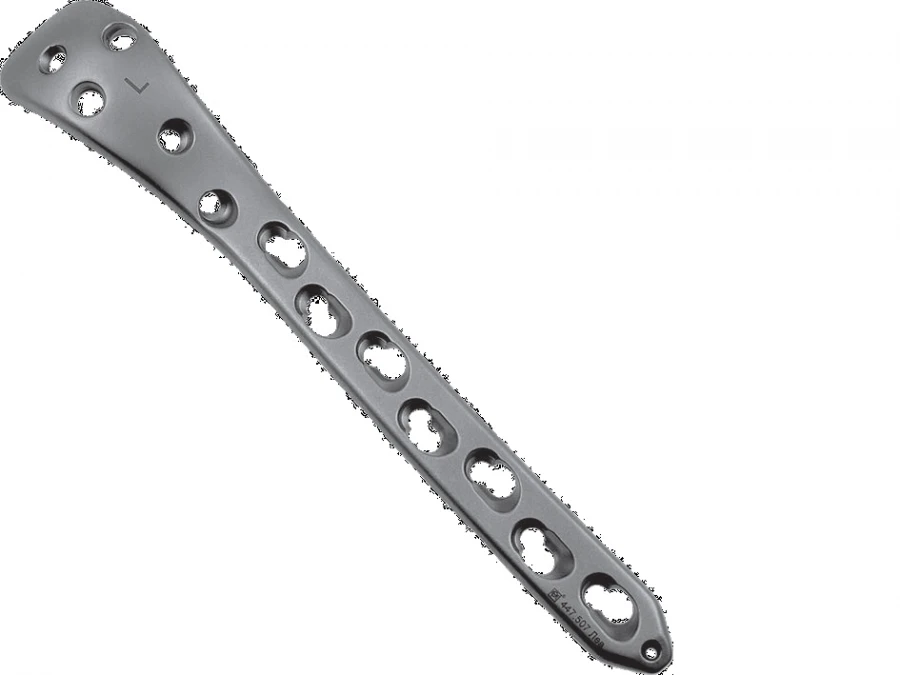

Proximal Femoral Plates for Osteosynthesis - Right and Left (Model 447.5XX R/L)

Fracture Treatment Devices

Manufacturer: OSTEOMED-M LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: for osteosynthesis of fractures of the proximal part of the femur and fractures extending to the diaphysis. The shape is anatomically curved to the shape of the femur. Separate design for right and left limbs.

Diaphyseal part: combined 8-shaped holes offset from the centre axis in a staggered pattern for screws with angular stability and cortical screws without angular stability; spoke hole at the distal end; tapered taper at the distal end. Metaphyseal part: anatomical expansion at proximal end; spoon-shaped rounding; multidirectional holes for angular stability screws; bend at metaphyseal-diaphyseal interface. Two threaded spherical holes at metaphyseal and diaphyseal boundary.

Limited contact selections along the lower surface. Rounded edges around the perimeter. Laser marking of the performance of the product.

Sterilisation required.

Specifications

Material

Titanium alloy

Length

123...375 mm

Individual packaging

As required by GOST R ISO 14630-2017

Sterility

MRI compatibility

Armoured glass

Bending angle at the border of metaphyseal and diaphyseal parts

Number of holes

5 pcs

Diameter of screws with angular stability

3.5 mm

Metaphyseal width

NZ-150-14,5 mm

Diameter of the guided spoke

1.2 mm

Number of 8-shaped holes

2...16 pcs

Diameter of cortical screws

4.5 mm

Diameter of screws with angular stability

5 mm

Diaphyseal width

18 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
