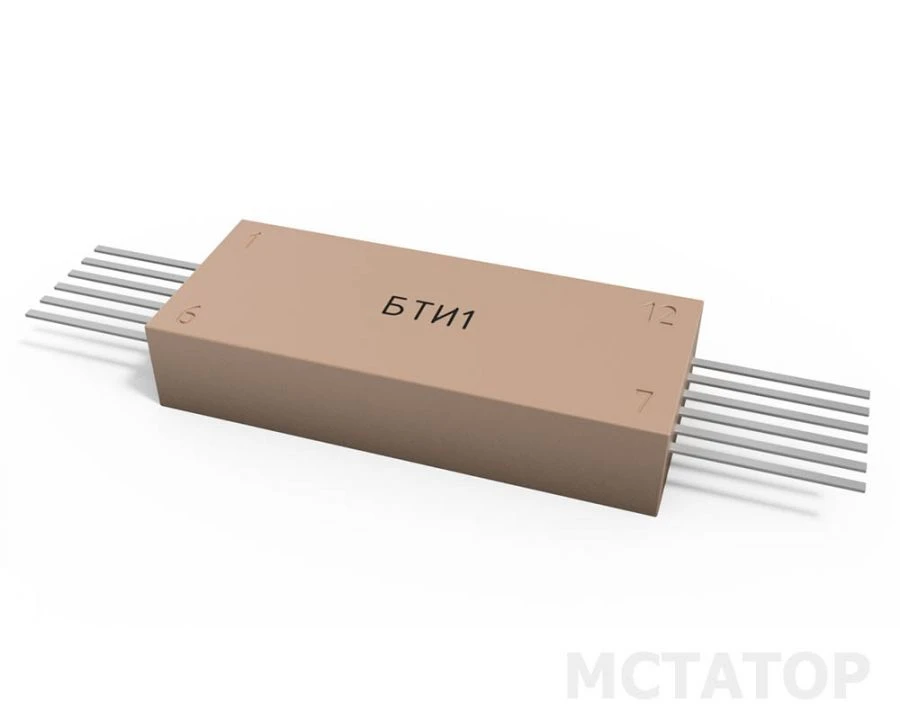

Pulse Transformer Blocks BTI1 for Microelectronics Applications

Electric Transformers

Manufacturer: PJSC "MSTATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Blocks of transformers pulse type BTI1 are designed for use in microelectronic equipment with operating voltage up to 10V and the product of pulse duration on the input voltage from 1.0 to 50.0 µs?V. Quality category "VP" and "OS".

Specifications

Insulation resistance, not less

100 (×10^6) ohm

Magnetizing current, not more

10 (×10^-3) A

Product of pulse duration by input pulse voltage

1.0 to 50.0 (×10^-6)

Number of transformers in the unit

2 pcs

Number of windings of each transformer

2...3 pcs

Primary winding inductance, not less than

0.1 to 5 (×10^-3)

Capacitance between primary and each secondary winding, not more than

20 to 220 (×10^-12)

Scattering inductance, not more

0.7 to 25 (×10^-6)

Electrical insulation strength: DC voltage

100 V
