Available for Import

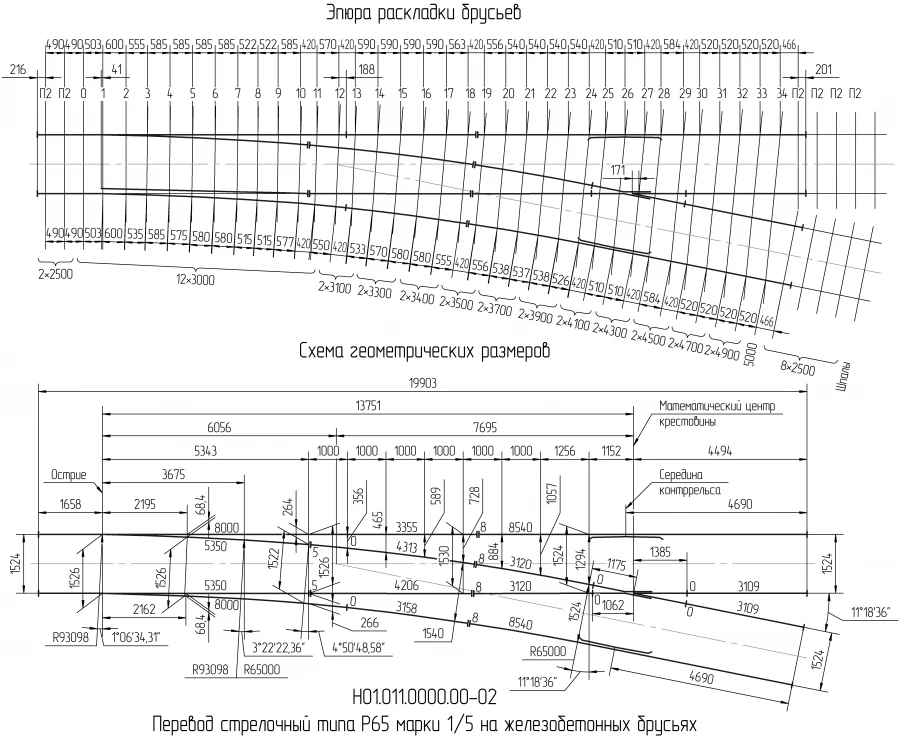

R65 Type Switch Translation for Metro Applications - Model 1/5 Project N01.011.0000.00-02
Manufacturer:
NSZ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Designed for operation on underground tracks. Design features: transfers: separate fastening; terminals of PC type; pads with flanges; switches: rotary shackle; liner-overlay fastening of the root; welded shoes; adjustable traction; crossbars: one-piece cast of high-manganese steel with liner termination of front and rear outreaches; counter rail from SP850 angle
Specifications
Cross type by angle
Spicy
View
Single
Type of single transfer
Ordinary
Arrow design
With rotating sharps
Cross brand
1/5
Rail type
?65
View in the direction of a side or crossing track
Right
Cross type by construction
Solid
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of timber
Reinforced concrete
