Rear Independent Suspension Assembly for SU2r Vehicles - Enhance Stability and Performance

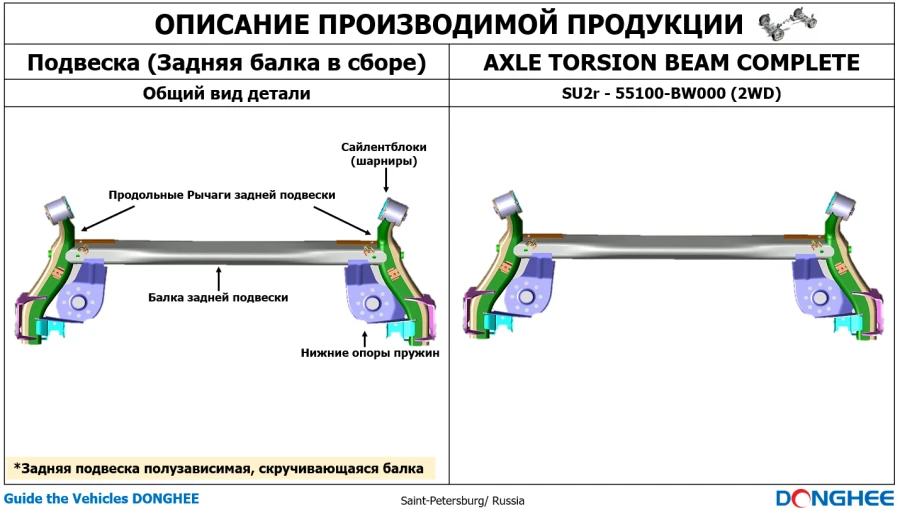

Rear Semi-Dependent Suspension Assembly for vehicle type: SU2r, for the manufacturer, address: St. Petersburg, Sestroretsk, Levashovskoe sh., 20, p.1, RF, TIN: 7801463902. Semi-independent with an elastic beam of U-shaped cross-section, spring with telescopic shock absorbers of double-sided action.

Flanges for rear wheel axles and brake shields, as well as brackets for spring supports are welded to the suspension arms. In front, the arms are equipped with welded bushings, in which the silent-blocks are pressed to connect the beam with the body. Structurally, it is made in the form of two longitudinal arms, which are connected in the middle by a crossmember.

This type of suspension is used only at the rear, practically on all front-wheel-drive cars. Among the advantages of this design can be highlighted ease of installation, compactness and low weight, as a consequence - a reduction in "unsprung masses", and its most significant advantage - the most optimal kinematics of the wheel.
