Rear Loading Garbage Truck BM-7028-53 on MAZ Chassis 5N33

Available for Import

Rear Loading Garbage Truck BM-7028-53 for Solid Waste Collection and Transport

Municipal Road Vehicles

Manufacturer: KOMMACH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

body of a rubbish truck with rear loading device, for collection of municipal solid waste (MSW) from containers, as well as manual collection of MSW, its compaction, transportation and mechanised unloading in places of neutralisation and disposal

Specifications

Type of product according to PP RF 616

Garbage trucks

Engine type

Four-stroke diesel engine

Hopper capacity

18...24

Base chassis type

MAZ 5N33

Wheel arrangement

6x4/ second and third axles

Type

7028?3

MSW compression ratio for the garbage truck

Up to 10

Machine type

7028?3

Type of garbage truck equipment

garbage truck body with rear loading device

Type

BM-7028-53

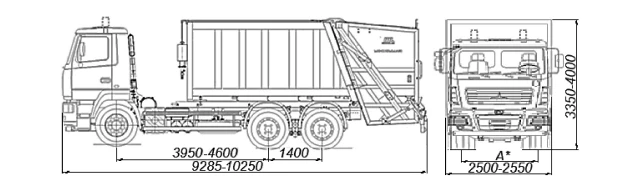

Vehicle length

9285… 10250 mm

Vehicle width

2500…2550 mm

Vehicle height

3350… 4000 mm

Base

3950… 4600 + 1400 mm

Front / rear wheel track

2020…2070 / 1790…1840 mm

Vehicle kerb weight

16000… 17000 kg

Technically permissible maximum mass of the vehicle

26500…33500 kg

Technically permissible maximum mass on each axle of the vehicle, starting from the front axle

9500…13000 kg

Internal combustion engine (make, type)

YAMZ 53603, four-stroke diesel engine with turbocharging and intermediate air cooling

Number and arrangement of cylinders

6, inline

Cylinder displacement

6650

Compression ratio

17,5

Maximum power, kW (min-1)

241(2300)

Maximum torque, N?m (min-1)

1270 (1300-1600)

Fuel

diesel

Power supply system (type)

pressurized fuel injection

Control unit (marking)

Bosch, EDC7UC31, 0 281 020 111

Fuel injector (type, marking)

Bosch, CR/CP3HS3/L110/30-789S, 0 445 020 110

Nozzles (type, marking)

Bosch, 0 445 120 178

Air blower (type, marking)

NPO "Turbotekhnika", TKR 80

Air filter (type, marking)

MAZ, Remiz, 238H-1109010(-???) or YaMZ, Remiz, 8421-1109010(-??)

Exhaust gas exhaust and neutralization system

with single silencer and exhaust gas neutralization system: Selective Catalytic Reduction (SCR) system

Neutralizers (markings)

muffler

Silencers (markings)

ROSSKATavto (RKa), Dinex Rus (DINEKS), MobilGas Service (MGS) 5365.1201010-? (5365-1201010-??)

Internal combustion engine (make, type)

WEICHAI, MAZ-WeiChai WP7.300E51, four-stroke turbocharged and intercooled diesel engine.

Cylinder displacement

7470

Compression ratio

18,0

Maximum power, kW (min-1)

215(2100)

Maximum torque, N?m (min-1)

1250 (1200-1600)

Control unit (marking)

Bosch, WPEDC7

Fuel injector (type, marking)

Bosch, WPCPN2

Nozzles (type, marking)

Bosch, WPCRIN2

Air blower (type, marking)

Honeywell, GT35

Air filter (type, marking)

MAZ, Remiz, 238H-1109010-(???)

Silencers (markings)

Weichai, WPSCR-002 (610800220???)

Transmission

mechanical

Clutch (brand, type)

Sachs, Donmez, MF-395; MFZ-430; YaMZ-183, 184

Front suspension (description)

dependent, spring-loaded, with hydraulic telescopic shock absorbers, with or without transverse stabiliser

Rear suspension (description)

dependent, spring-balanced, with or without transverse stabiliser or dependent, pneumatic, with hydraulic telescopic shock absorbers, with or without transverse stabiliser

Steering (description)

Power assisted

Steering mechanism (type)

"screw - ball nut - rail - sector"

Brake systems

Dual circuit, pneumatically driven, with front axle and rear bogie split into circuits, with ABS, with or without ESP (ESC), drum brakes on all wheels.

Brake systems

parking brake system

Brake systems

Drive from energy accumulators to rear bogie wheel brakes

Brake systems

Gas dynamic brake installed in engine exhaust system; retarder or compression braking may be provided

Vehicle equipment

Chassis equipment: emergency call device; optional (chassis equipment): autonomous cabin heater, engine preheater, air conditioner, electric door locking, antenna, winch, tachograph, satellite equipment

Transmission (make, type)

ZF, 9S???, 9S??????, EATON, E?????09; Shaanxi Fast Gear Co., 9JS????, 9JS?????, 9JS??????, 9JS???????; YAMZ-239; Shaanxi Fast Gear Co, 12JS????, 12JS?????, 12JS??????, 12JS???????; Shaanxi Fast Gear Co., 16JS????, 16JS?????, 16JS??????, 16JS???????, C16JS?

Technically permissible maximum mass on each axle of the vehicle, starting from the front axle

7500 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
