Reflector for Fire Smoke Detector IPDL-D-I/4r - Enhances Detection Accuracy

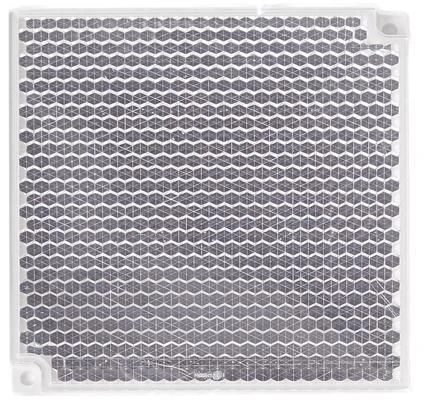

Reflector for IPDL-D-I/4p is used in conjunction with the detector fire smoke linear IPDL D-I/4p and is designed to reflect and direct the beam towards the source of radiation with minimal energy loss. The number of reflectors used together with the detector is determined by the range to be provided. The range of the detector depends on the area of the reflector and is: <ul> <li>- 8 to 50 m with one reflector (included in the delivery set);</li> <li>from 50 to 75 m with two reflectors (one is included in the delivery set, the second one is optional);</li> <li>75 to 100 m with four reflectors (one from the delivery set, three - by additional order).</li> </ul>When mounting four reflectors, it is recommended to use the Plate for mounting four reflectors. Four reflectors can be mounted directly on the wall. When mounting the reflectors it is allowed to deviate the axis of the reflected beam relative to the reflector plane by an angle of ±10°.
