Regulating Ball Valve 692 Welded for Flow Control in Heating and Cooling Systems

Connection type: welded/welded

TEMPER regulating ball valves are designed for regulating (balancing) the flow of medium in heating, cooling and ventilation systems. The ball has a special cross-section and the valve is equipped with a scale with values. Regulation is performed by turning the handle with a pointer. The selected handle position is secured with a bolt and butterfly nut.

Two designs:

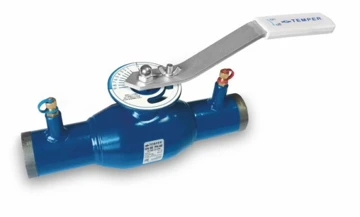

1)With measuring nipples (see figure below).Flow and differential pressure in the system can be measured by means of a flow meter.

2)Without measuring nipples. The flow rate can only be adjusted by means of a handle with pointer.
