Reinforced Floor Telecommunications Cabinet 19" Model ШТ-ПУ-47U-800x1200-2П2П

Available for Import

Reinforced Floor Telecommunications Cabinet 19" for Secure Equipment Storage

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The telecommunication floor cabinet is an independently installed, self-supporting structure designed for compact placement of equipment of information transmission and storage systems, installation of cable telecommunication, server, computing equipment and uninterruptible power supply sources in it, inside office and crossing premises. The product can be used separately or in combination with other cabinets installed in a row. The cabinet is equipped with vertical elements allowing to fix panels of the corresponding standards on them.

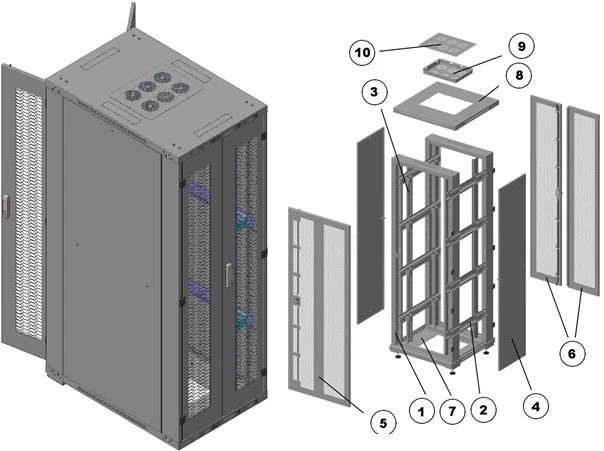

The construction is collapsible and is delivered unassembled. Two massive welded frames, connected by a set of channels, provide increased rigidity of the structure. The upper and lower part of the cabinet is blocked by panels with cable glands.

The panels are prepared for installation of modules (blocks) for various purposes. The cabinet is optimised for the placement of server equipment.

Specifications

Type of accommodation

Floor

Type of construction

collapsible

Height, U

Width

800 mm

Usable depth

1200 mm

Maximum distributed load

1350 kg

Type of floor support

adjustable supports

Availability of fasteners to the support (pole)

Type of front door(s)

perforated

Type of rear door(s)

perforated

Removable side panels

Armoured glass

First characteristic digit of the degree of protection designation

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

2 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
