Reinforced Wall-Mounted Distribution Cabinet 27U - SHRN-25U-600x1300x550RT1 for Secure Electrical Distribution

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

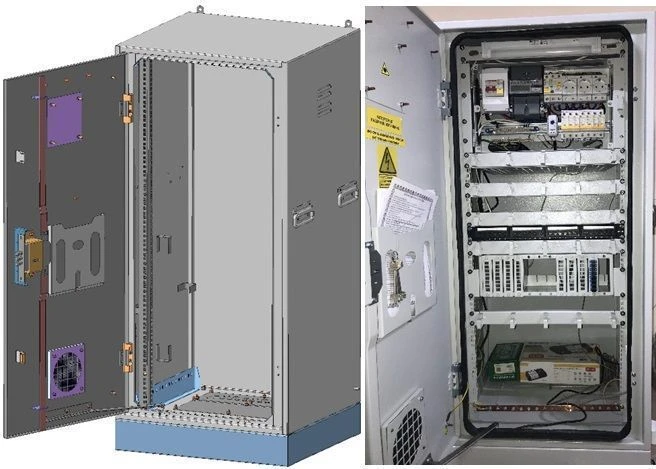

ShRNU-V-25U-600x1300x550RT1 Wall-mounted distribution cabinet reinforced, size 19" - 27U, overall dimensions ????????= 600?1300?500. Type 1. IP54 The product (hereinafter referred to as SHRNu) is a vandal-proof telecommunication cabinet designed to accommodate active telecommunication equipment or in-house technical means of security systems, control and management of engineering equipment and resource consumption metering, as well as for installation of intercom, telemetry, video surveillance, WiFi equipment.

The cabinet is designed for installation of the following equipment: power supply system complete with network voltage stabiliser, life support system of the cabinet, electricity meter, monitoring system, optical cross-country and other related equipment.

Specifications

Second characteristic digit of the degree of protection designation

Type of floor support

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Upper limit of operating temperature

40 °C

Resistance to mechanical external influencing factors (EIF)

according to gost 17516.1-90 (IEC 721-3-3-87) - m42

Resistance to mechanical (BBF) effects

according to iec 62262 class ik08

Type of accommodation

floor/hanging indoors

Height, U

Operating temperature range

0...40 °C

Device type

Reinforced wall-mounted distribution cabinet

Height/story (unit)

Form factor (rack-mounted, freestanding)

freestanding

Depth

500 mm

Protection class

IP54

Weight

52 kg

Height

1300 mm

Width

600 mm

Availability of fasteners to the support (pole)

Armoured glass

Type of accommodation

In the room for surface mounting

Type of construction

All-welded

Height , U

Usable depth

550 mm

First characteristic digit of the degree of protection designation

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
