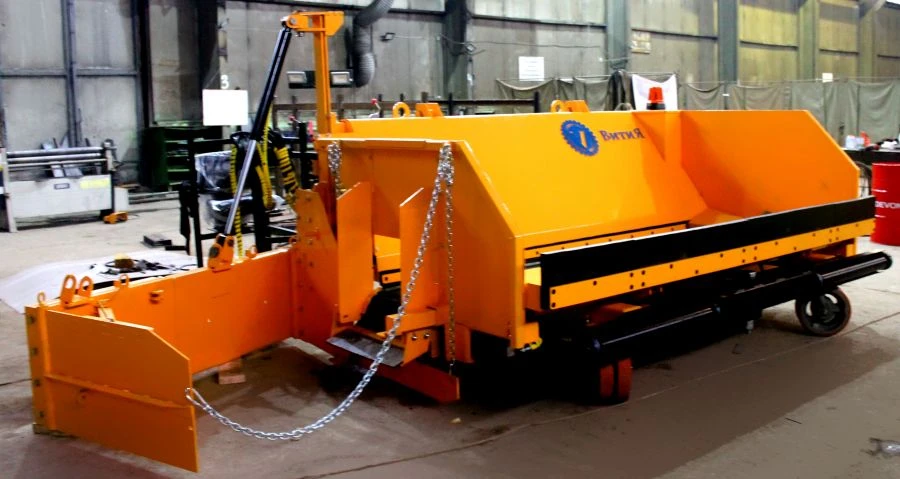

Efficient Road Shoulder Filler MO-3000 for Various Applications

The MO-3000 roadside sprinkler is designed for any kind of works related to roadside construction. It performs expansion, compaction, roadside planning, filling of trenches, can be used in construction of roadside pedestrian roads and pavements. MO-3000 paves various types of soil, gravel and asphalt, and when equipped with an additional option "Tray-plate" can be used to create drains from hot asphalt.

Characteristics: Weight of empty unit, kg, - 3000 Working width, mm. - from 250 to 3000 Stepless adjustment in the range, mm. - from 200 Conveyor belt width, mm.

- 510 Material stacking height, mm. - from + 370 to - 370 Stacking slope, gr. +/- 15 Engine - HATZ 2G40 Fuel type - diesel Engine power, kW / hp.

- 15,1 / 20 Hydraulic system tank with filter, temperature and oil level indicators Transporter drive - hydraulic Hydraulic infinitely variable adjustment of working tools Slope height indicator - mechanical...
