Rolling Bearing 86-2672944P1-TU 3900-A for Effective Positioning in Mechanisms

Short Cylindrical Roller Bearings

Manufacturer: EPK Samara OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Bearing 5-2672119P1-ETU 100/1 Bearing 55-2672919R4-ETU 100/1 Bearing 86-2672944R2-TU 3900-A Bearing 55-2672919R5-ETU 100/1 Bearing 76-1672924P1-TU 3900-A

Description

It is used as a support that determines the position of moving parts in relation to other parts of the mechanism, working on the principle of rolling friction. It consists of an outer double-sided ring, an inner non-sided ring, cylindrical rollers and a solid cage. It is designed to support radial loads. Due to the large contact surface between the rollers and rings, this bearing is able to absorb loads exceeding those absorbed by deep groove ball bearings of the same overall dimensions.

Specifications

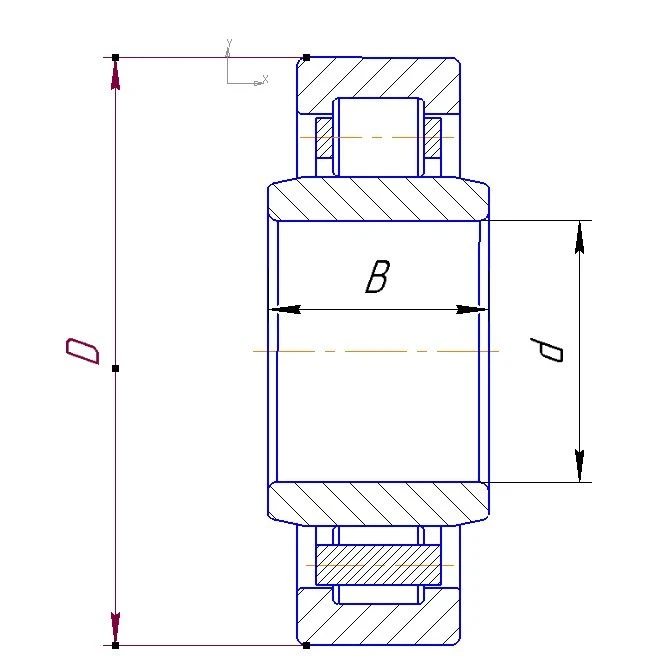

Internal diameter (d)

220 mm

Outside diameter (D)

300 mm

Height (B or H)

48 mm

Separator brand

BrAZhMc 10-3-1.5 C

Brand Ring Outer

8?4?9?2?

Mark Ring Inner

8?4?9?2?
