Rope Guardrail ASCY.364157.001-05 for Ships and Vessels

Available for Import

Rope Guardrail ASCY.364157.001-05 for Marine Applications

Special Purpose Equipment

Manufacturer: ICEBERG LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

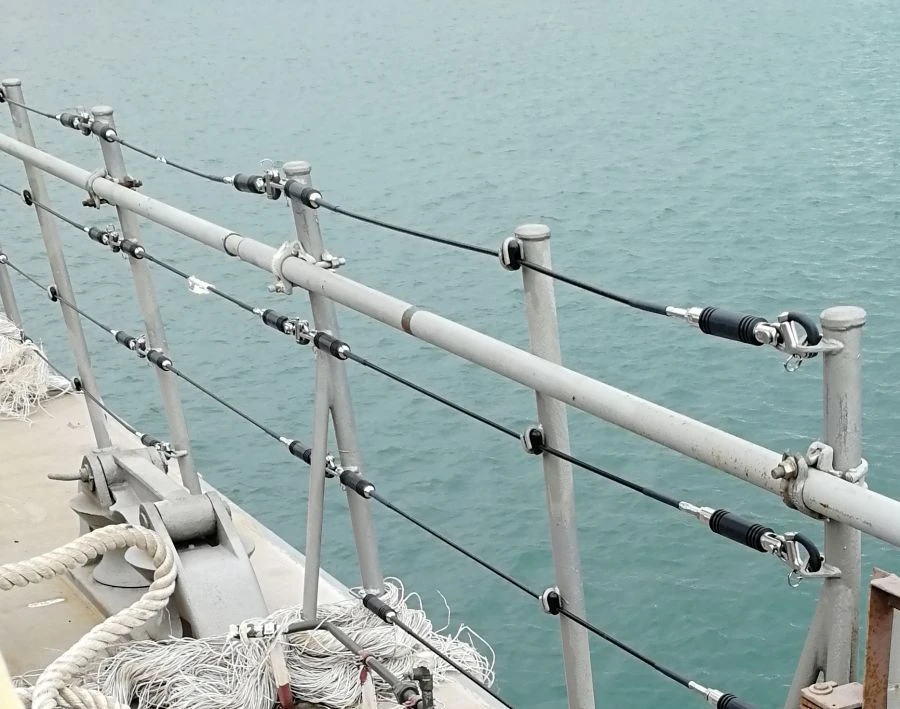

Trope belays and their structural elements, designed for use on ships, vessels and watercraft of civil and naval fleets, are manufactured according to TU 6412-001-54266140-2016. Levers are made of corrosion-resistant materials (steel 12?18?10? according to GOST 5632, aluminium alloy AMg-6 according to GOST 4784).

The used rope is steel, corrosion-resistant, complying with GOST R ISO 9554, with breaking force not lower than four times the working load, covered with polyurethane protective sheath. Chain-layers are produced for fencing of small width passages. Fastening of the cable cable is performed with the help of cable lugs by pressing or collet clamping method.

The fence is suitable for operation in OM climate of placement category 1.1 according to GOST 15150, at ambient temperature from minus 50 to plus 60 º? and relative humidity up to 100% at 25 °?. Type of atmosphere - III.

Specifications

Weight, not more

1 kg

Service life, at least

10 year

Cable termination

Termination of the cable line is carried out with the help of cable lugs by the pressing method

Bench testing

Each product is tested on a tensile load test bench.

Used rope (cable)

Applicable rope - steel, corrosion-resistant, coated.

Labeling

Each leer is impact labelled.

Packaging

individual packaging for each cable ladder

Special rigging element

the element of own design replacing the turnbuckle is used in the structure of the trailer.

Operating temperature

25 °C

Dimensions (DxWxH), mm

150x30x30

Product material

stainless steel

Operating temperature

-50...60 °C

Versatility of application

manufacturing for any size

Easy assembly and disassembly

Availability of bastropel carabiners

Means of collective defence

is a means of collective protection (to prevent people from falling overboard or into the hold).

Produced in RF

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
