Rotary Mechanical Crusher for Primary Material Size Reduction MI 250–380–12–UHL4

Available for Import

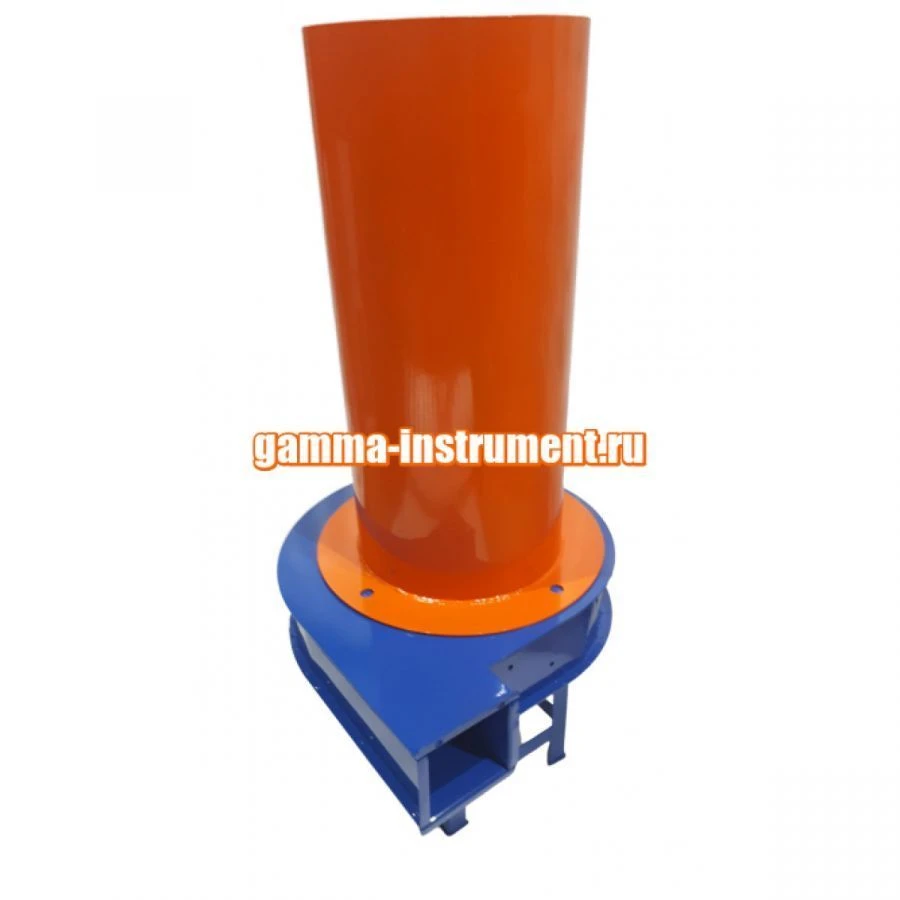

Rotary Mechanical Crusher MI 250–380–12–UHL4 for Effective Primary Material Size Reduction

Special Purpose Equipment

Manufacturer: GAMMA-INSTRUMENT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Rotor mechanical shredders (crushers), model series MI, MIG - crushing equipment for primary and subsequent size reduction of a wide range of materials (plastic products with a wall thickness not more than 4 mm, foam, foam rubber, foam rubber, syntepon, expanded polystyrene, polymer films, polypropylene bags and waste). The crushers are equipped with high-speed rotating knives, effectively crushing the material to flakes and shavings. They are intended for crushing of materials, production waste (for the purpose of reuse of raw materials - recycling), at small and medium-sized enterprises, as well as for use in various sectors of national economy and exports.

Specifications

Voltage

380 V

Weight, not more

NZ-150-14,5 kg

Service life, at least

5 year

Number of knives, rotary/stationary, pcs.

4/no.

Rotor dimensions

280 mm

Receiving opening dimensions

280 mm

Working chamber diameter

300 mm

Crusher capacity, kg/h

up to 30

Size of maximum piece of material to be loaded, mm

For plastic products, the wall thickness must not exceed 4 mm

Output fraction size

6...40 mm

Nominal rotor speed

3000

Circumferential speed of rotating rotor blades

Adjustable width of exit slits

0.5...5 mm

Installed power nominal

2.2 kW

Overall dimensions (length x width x height), mm

500x470x1050

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
