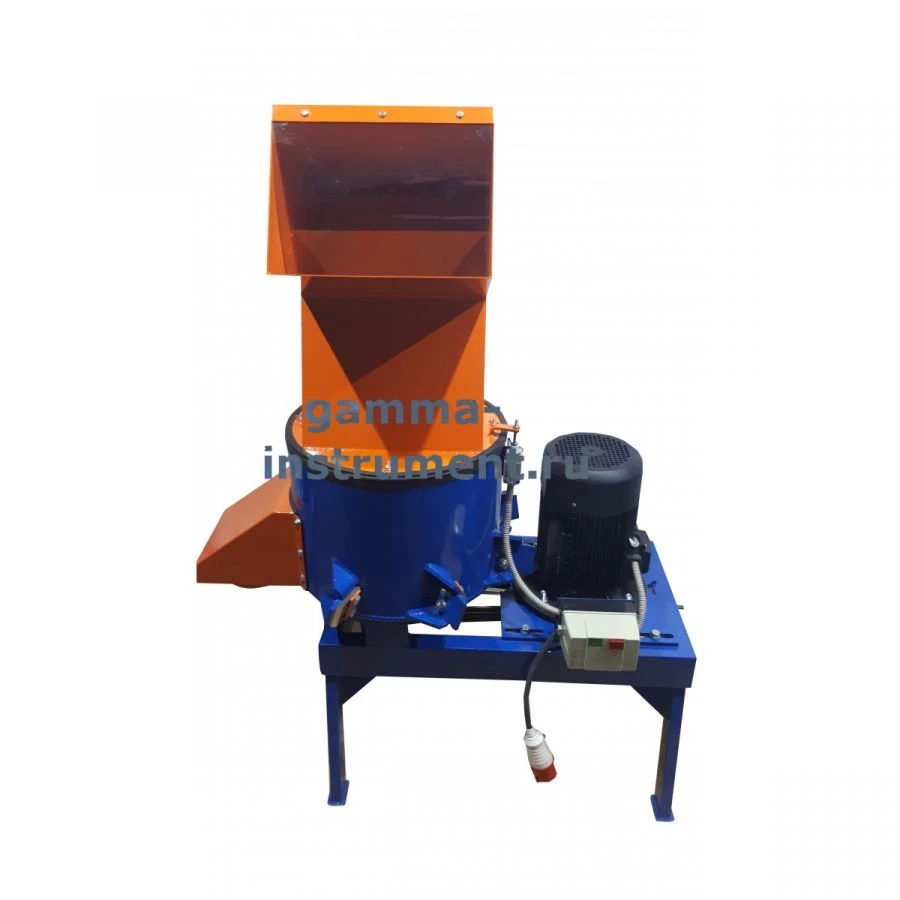

Rotary Mechanical Shredder MI 600-PL for Effective Material Size Reduction
Manufacturer:GAMMA-INSTRUMENT LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Rotor mechanical shredders (crushers), model series MI, MIG - crushing equipment for primary and subsequent size reduction of a wide range of materials (plastic products with a wall thickness not more than 4 mm, foam, foam rubber, foam rubber, syntepon, expanded polystyrene, polymer films, polypropylene bags and waste). The crushers are equipped with high-speed rotating knives, effectively crushing the material to flakes and shavings. They are intended for crushing of materials, production waste (for the purpose of reuse of raw materials - recycling), at small and medium-sized enterprises, as well as for use in various sectors of national economy and exports.
Specifications
Voltage
380 V
Weight, not more
208 kg
Service life, at least
5 year
Drive type
Belt
Rotor dimensions
470 mm
Receiving opening dimensions (L x W), mm
400x280
Working chamber diameter
530 mm
Number of knives, rotary/stationary, pcs.
2/6
Crusher capacity, kg/h
up to 110
Size of maximum piece of material to be loaded, mm
For plastic products, the wall thickness must not exceed 4 mm
Output fraction size
6...40 mm
Nominal rotor speed
1500
Circumferential speed of rotating rotor blades
37
Adjustable width of exit slits
0.5...5 mm
Installed power nominal
11 kW
Overall dimensions (L x W x H), mm
1200x700x1600
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
