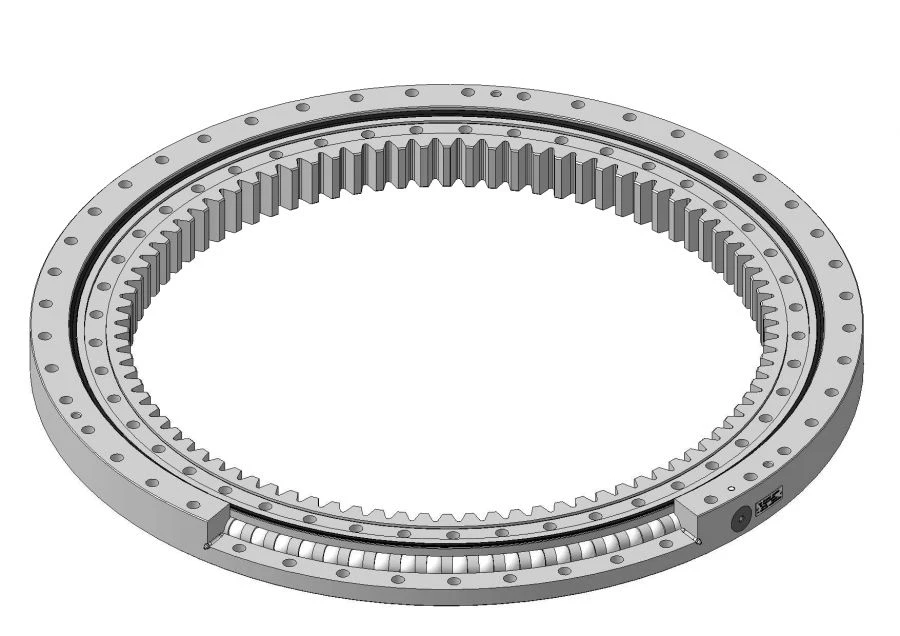

Rotating Support OP-1298.2.2.12.2.Sh U1 for Efficient Movement

Support swivel OP-1298.2.2.2.12.2.2.Sh U1 is designed for use as a node that provides rotation of the rotary part of the product relative to the non-rotary with a frequency of not more than 16 rpm and the transfer of loads (load moment, axial and radial forces). Type of construction - ball; Type of meshing - internal; Gearing modulus - 12 mm; Number of teeth - 84 pcs; Material of rings - Steel 55 GOST 1050-88 (normalisation) / Steel 45KhN-3-TO GOST 4543 (improvement); Weight - 278 kg.
