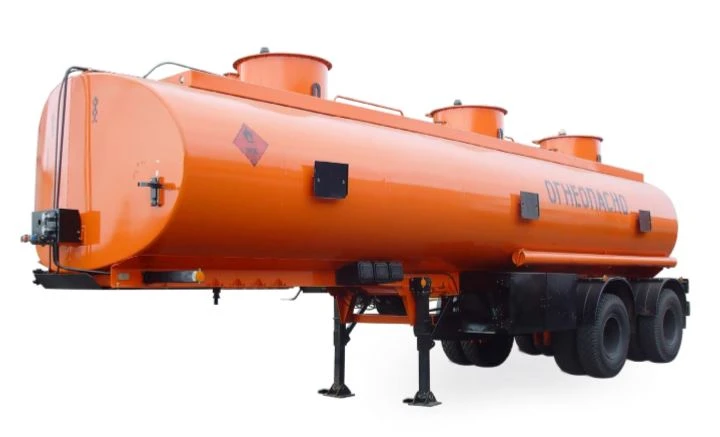

Semi-Trailer Tank for Petroleum Products PPC NEFAZ 9693 for Transporting and Storing

Semi-trailer-tanker for oil products PPTS NEFAZ 9693 with axles NEFAZ, with pump unit is designed for transportation and short-term storage of oil products. Variant version: - with or without pump. Tank body of elliptical cross-section, calibrated, with one or two, or three or four or five compartments.

Each compartment is equipped with a neck, air pipes, fuel level sensor. The neck cover is equipped with a filling hatch and a breathing device. The compressor station is equipped with a spare parts box, cases for stowing pressure-suction hoses, a safety platform in the neck area with a handrail and a ladder, fire-fighting equipment.

Technological equipment includes a draining and filling device consisting of pipelines, bottom valves, shut-off valves seamless electrical wiring protection conduits, powder fire extinguishers, bottom valve control system, optional: pump, counter, measuring unit, bottom filling system and vapour recovery system. The support device serves as a front support of the unhitched from the tractor unit. Suspension is independent, balanced, spring suspension.

Braking systems: - working - pneumatic, two-line, drum-type brakes of all wheels, with ABS; - parking - drive from spring energy accumulators to the brakes of all wheels.
