Single Girder Gantry Crane for Efficient Lifting and Moving Applications

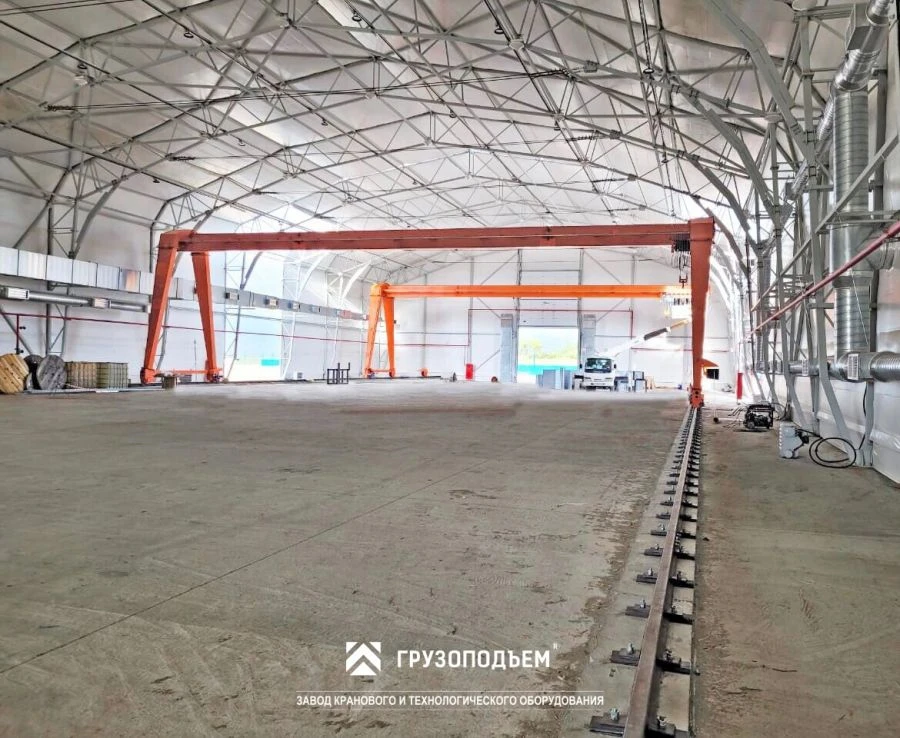

The construction of the crane is a bridge with two supports. It is used for lifting and moving any loads up to 16.0 tonnes. Rail gantry gantry crane is widely used in manufacturing enterprises for repair, loading and unloading work and other purposes.

The crane can be used both outdoors and indoors at ambient temperature from -40°? to +40°?. Main characteristics: g / n up to 16.0 tonnes, span length up to 32.0 m, lifting height up to 36.0 m, type of drive on the movement electric, mode of operation according to ISO 4301/1: A4 and above, crane version: OPI / PBI, protection degree of crane movement mechanisms: IP 54 / IP 65.

By default the equipment is painted in orange colour RAL 2004. Other colours available on request.
