SPARK-KONUS-M Apparatus for Accurate Helicopter Blade Position Measurement

The apparatus is designed for measuring the relative position of helicopter main rotor blade tips with the number of blades from two to eight by non-contact method on the ground and in flight.
In terms of construction the equipment is designed as a portable control system.

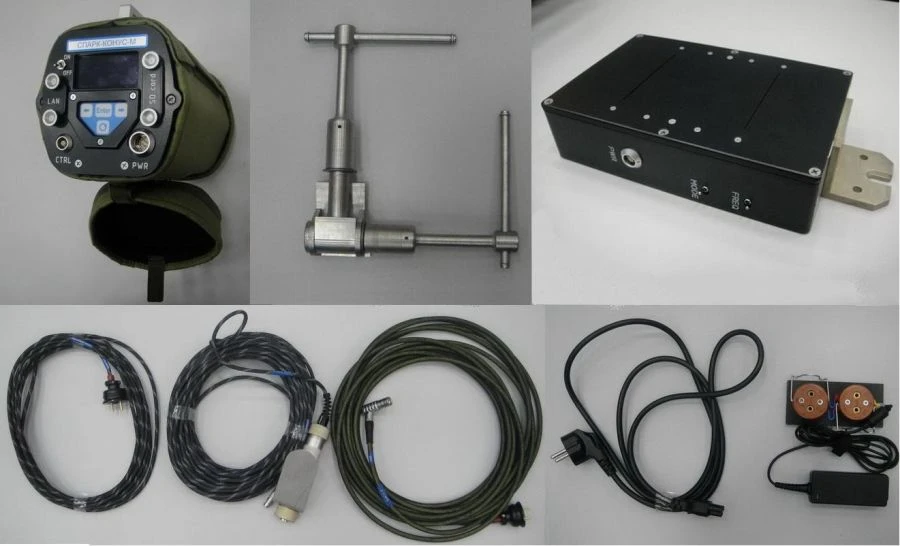

The block of the camera head is the main component of the apparatus and is designed to form a video signal of helicopter main rotor blades, mathematical processing of the video signal, output to the coordinates indicator in real time, providing recommendations for adjustment, as well as for saving the results of measurements.
