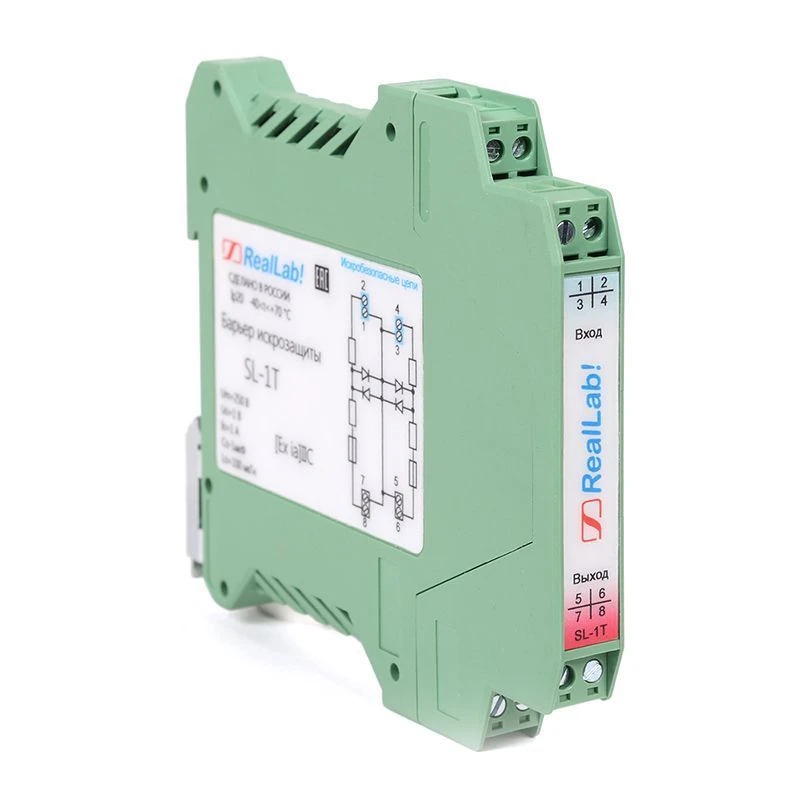

Spark Protection Barrier for Thermocouple Signal Transfer - SL-1T

Purpose: intrinsically safe transmission of thermocouple signals Intrinsic barrier type:passive Type of signal/sensor: thermocouples Number of sensors to be connected: 1 Signal parameters or connection method: voltage, DC, AC, pulse Signal range:-0.25V to +0.25V Maximum resistance of one branch: 20 Ohm Upper limit of signal range:+0.25 V Rated fuse current: 50 mA Explosion protection marking: [Ex ia] IIC/IIB/I Human protection class against electric shock: 01 according to GOST 12.2.007.0-75 Operating temperature range: -40°C to +70°C Average MTBF: 100000 hrs. Average service life, not less than 12 years Overall dimensions (HxWxH): 99x12,5x114,5 Mounting: on DIN-rail Degree of protection: IR20 according to GOST 14254-2015 Warranty: 36 months.
