Available for Import

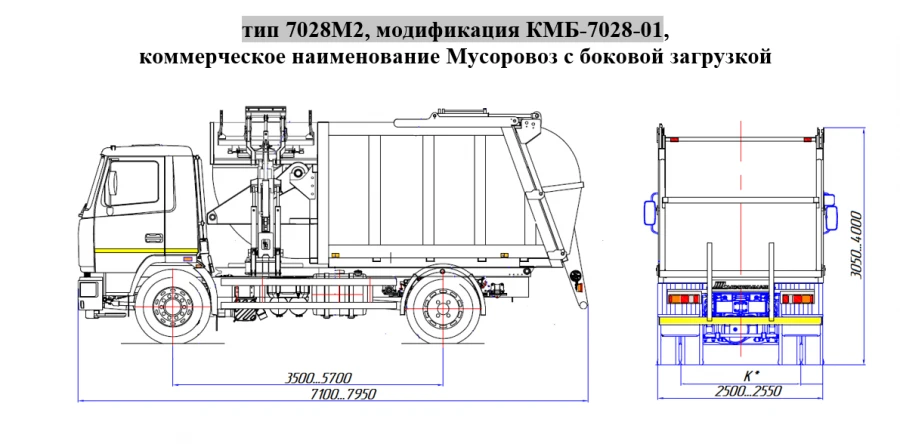

Special Side Loading Garbage Truck KMB-7028-01 for Efficient Waste Collection
Manufacturer:
KOMMACH LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
body of a rubbish truck with side loading device, for collection of municipal solid waste (MSW) from containers, as well as manual collection of MSW, its compaction, transportation and mechanised unloading in places of neutralisation and disposal
Specifications
Type of product according to PP RF 616
7028?2
Type of product according to PP RF 616
Garbage trucks
Hopper capacity
14...18
MSW compression ratio for the garbage truck
Up to 10
Machine type
7028?2
Base chassis type
MAZ 5N32
Engine type
Four-stroke diesel engine
Type of garbage truck equipment
garbage truck body with side loading device
Wheel arrangement
4x2 / rear
Wheel arrangement
4 x 2 / rear
Height
3050...4000 mm
Type
7028?2
Vehicle length
7100…7950 mm
Vehicle width
2500…2550 mm
Base
3500…5700 mm
Front/rear wheel track
2000…2070 / 1790…1840 mm
Vehicle kerb weight
11800…12300 kg
Technically permissible maximum mass of the vehicle
16000…22000 kg
Technically permissible maximum mass on each axle of the vehicle, starting from the front axle
6000…9000 kg
Technically permissible maximum mass on each axle of the vehicle, starting from the front axle
10000…13000 kg
Maximum trailer weight
trailer towing is not provided kg
Internal combustion engine (make, type)
YaMZ, 53653; YaMZ, 53623; WEICHAI, MAZWeichai, WP7.270E51 four-stroke diesel engine with turbocharging and air intercooling
Number and arrangement of cylinders
6, inline
Cylinder displacement
6650
Cylinder displacement
7470
Maximum power, kW (min-1)
175(2300)
Maximum power, kW (min-1)
200,7(2300)
Maximum power, kW (min-1)
194(2100)
Maximum torque, N?m (min-1)
1044 (1300...1600)
Maximum torque, N?m (min-1)
1161 (1300…1600)
Maximum torque, N?m (min-1)
1160 (1200…1600)
Fuel
diesel fuel
Power supply system (type)
pressurized fuel injection
Control unit (marking)
Bosch, EDC7UC31, 0 281 020 111; ITELMA, MD22, 3012.3765 001-01
Control unit (marking)
Bosch, WPEDC7
Fuel injector (type, marking)
Bosch, CR/CP3HS3/ L110/30-789S, 0 445 020 110
Fuel injector (type, marking)
Bosch, WPCPN2
Nozzles (type, marking)
Bosch, 0 445 120 178
Nozzles (type, marking)
Bosch, WPCRIN2
Air blower (type, marking)
NPO "Turbotekhnika", TKR 80; YaMZ, C21 xxx xx
Air blower (type, marking)
Honeywell, Garrett, GT35
Air filter (type, marking)
dry type, with paper filter element, Avtodizel (YaMZ), Remiz: 8421- 1109010, 8421-1109010-21, 8421-1109010-24, 8421-1109010-25, 8421-1109010-26; MAZ, Remiz: 238N-1109010, 238N-1109010-20, 238N-1109010-21, 238N-1109010-26
Air filter (type, marking)
dry type, with paper filter element, MAZ, Remiz: 238N1109010, 238N1109010-20, 238N1109010-21, 238N
Exhaust gas exhaust and neutralization system
with single silencer and exhaust gas neutralization system: Selective Catalytic Reduction (SCR) system
Exhaust gas exhaust and neutralization system
muffler
Silencers (marking) - 1 stage
ROSSKATavto (RKa), Dinex Rus (DINEKS), MobilGazService (MGS): 5365- 1201010-01, 5365.1201010-02, 59345, 5365.1201010-03, 5365-1201010-21, 5365.1201010-22, 59346, 5365.1201010-23
Silencers (marking) - 1 stage
WEICHAI: WPSCR002 (610800220244, 610800220216, 1000971875)
Transmission
mechanical
Clutch (brand, type)
Sachs, Donmez, MF-395, MFZ-430; YAMZ-183, 184, friction, dry, single disk
Transmission (make, type)
ZF, 9S1310TO; 9S1315TO; EATON, ESO12209; Shaanxi Fast Gear Co, 9JS135A; 9JS135TA; 9JSD135A; 9JSD135TA; 9JS150F; 9JSD150F; 9JS180A; 9JS180TA; 9JSD180A; 9JSD180TA; 9JSD200T; 9JSD200T; 9JSD200T; 9JSDX200T; 9JS200A; 9JSD200A; 9JSDX200A; 9JSD200TA; 9JSD200TA; 9
Suspension
dependent, spring-loaded, with hydraulic telescopic shock absorbers, with or without transverse stability stabilizer
Suspension
dependent, spring-loaded, with or without hydraulic telescopic shock absorbers, with or without transverse stability stabilizer or dependent, pneumatic with hydraulic telescopic shock absorbers, with or without transverse stability stabilizer
Steering (description)
Power assisted
Steering
steering mechanism of screw-ball nut-rack-sector type; MAZ: 64221-3400008-02, 64221-3400010, 64221-3400010-10, 64229- 3400008, 64229-3400010-01 or SNKF: 453461.700, 453461.700-35, 453461.720-20, 453461.400, 453461.400-10, 453461.400-40 or ZF, BOSCH:
Brake systems
dual-circuit, pneumatically actuated, with separation into axle circuits, ABS, with or without ESP (ESC) stability system, disc or drum brakes on all wheels.
Brake systems
One of the service brake system circuits or parking brake system
Brake systems
drive from energy accumulators to rear axle wheel brakes
Brake systems
газодинамический тормоз, установленный в выпускной системе двигателя; и/или компрессионное торможение двигателем; может устанавливаться ретардер
Vehicle equipment
emergency call device with automatic activation in case of overturning; maximum speed limitation device (maximum speed limitation is performed by electronic engine control system) optional: self-contained
Compression ratio
17.5
Compression ratio
18
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
