Specialized Five-Axis Cutting and Perforation Machine SL5150 for Complex Shapes

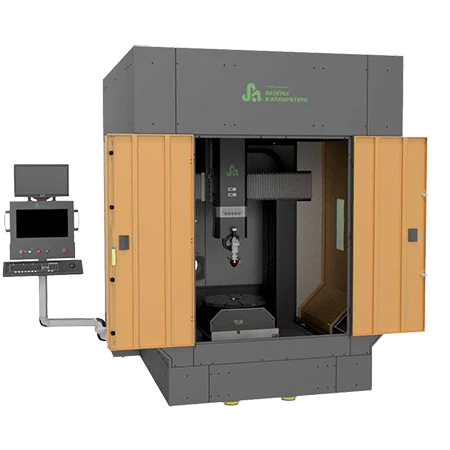

Specialised laser complex SL5150 is designed for machining parts weighing up to 500 kg and with dimensions up to D1200x500 mm. Purpose: Perforation of holes in parts of complex shape at right angles and at angles of 20? to the machining surface. Contour cutting of windows and holes in parts at large negative angles in the form of a rotary table.

Features and advantages of the laser complex SL5150:

High precision Additional axis as rotary table

Coordinate system:

Half-portal XYZ Stroke 1200x1200x800 mm Speed 60m/min Positioning accuracy 15 µm

Optomechanical device: Stroke: B ±135?, C 360?n Speed: B 60 rpm, C 60 rpm. Direct drive Accuracy 0.015 ?

Rotary table: Stroke: 360?n Speed: 100 rpm Accuracy 0.015? Direct drive Faceplate ø800 mm Maximum load 300kg

Working head: Safety glass cartridge Automatic gap maintenance module Coaxial video channel
