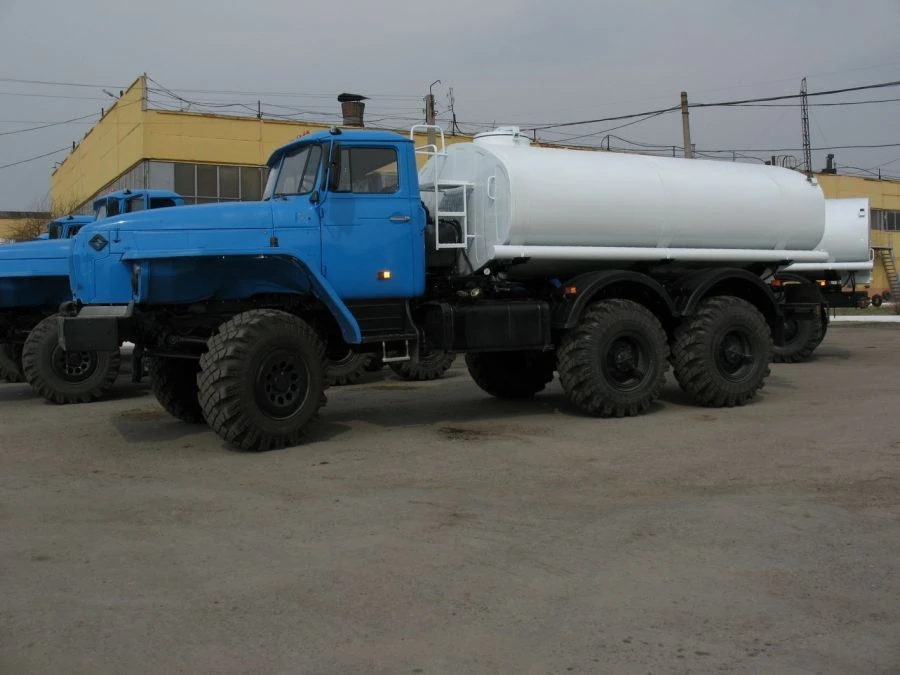

Specialized Tank Truck 4685-0000010-10 for Transporting Food Liquids

The tank is designed for transportation and short-term storage of food liquids (drinking water), density not more than 1,03 g/cm³, in conditions intended for products manufactured under category 1 of GOST 15150-69 in climatic version "U". The tank is equipped with centrifugal pump NTSS-50-7,1-20 with a head of 20 m at nominal capacity of 25 m³/hour. On-board pumping station is located in a heat-insulated compartment on the rear end of the tank.

The pumping unit provides three operating modes with water supply capacity of 25 m³/hour at a head of 20 m, self-priming height of 5 m.: -filling the tank; -discharge of liquid from the tank; <ul> <li>- pumping of liquid bypassing its own tank.</li> </ul>On-board pumping unit has a reliable hydraulic drive from KOMA of the base chassis engine. At the limit filling of any of the fully autonomous sections, light and sound signalling is automatically activated and the filling pump is automatically stopped.
