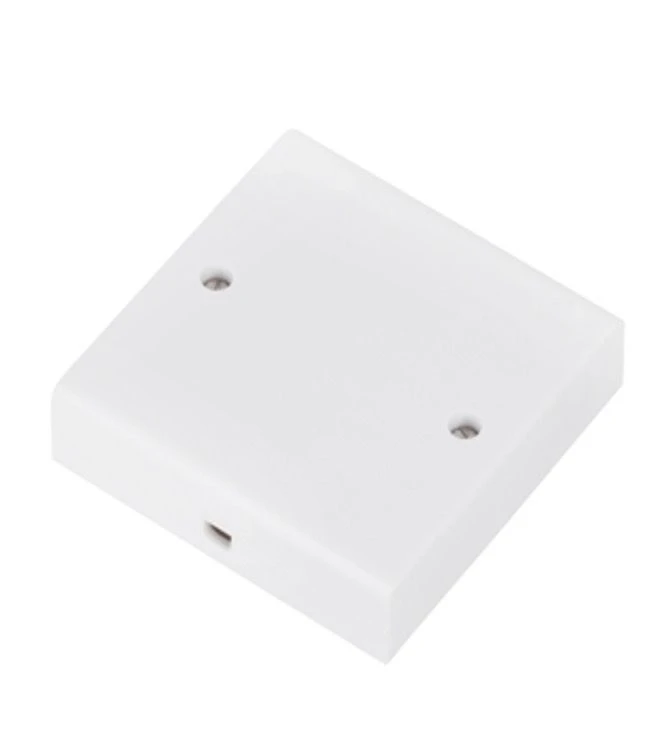

Standalone Access Control Controller Z-5R for Access Management
Manufacturer:
OTK LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for use in access control and management systems (ACS) as a stand-alone controller with a power relay at the output to control external devices. As input devices can be connected contactor keys Dallas Touch Memory (keys DS1990A) or contactless proximity-card reader, emulating the protocol iButton (Dallas Touch Memory) or Wiegand (26-42 bits).
Specifications
External reader connection protocol
IButton (Dallas Touch Memory), Wiegand (26-42)
Number of keys/cards (max)
1364 pcs
Key support 1996
Armoured glass
Sound/light indication
Buzzer, LED
External LED and external buzzer control
Armoured glass
Output for lock connection
Relay (type 1C)
Switching current (24V /120V AC)
3 A
Jumper for selecting the lock type
Electromagnetic, electromechanical
Setting the duration of lock opening
0...220
DC supply voltage
9...24 V
Current consumption
45 mA
Enclosure dimensions
65x65x20 mm
Board dimensions
46x36x15 mm
Case material for "Z-5R (mod. Case)"
ABS plastic
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
