Available for Import

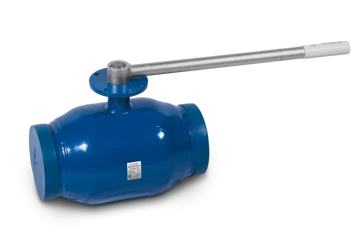

Standard bore ball valve 282, with flange for actuator
Manufacturer:
TEMPER LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Standard Passage Ball Valve 282 with Flange for Drive Installation, 28220250
Standard bore ball valve 282, with flange for actuator mounting, 28220150
Standard bore ball valve 282, with flange for actuator installation, 28220500
Standard bore ball valve 282, with flange for actuator installation, 28220200
Standard bore ball valve 282, with flange for actuator installation, 28220300
Description
Connection type:
welded/welded
Working Environment:
Heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media not aggressive for materials
valve parts.
welded/welded
Working Environment:
Heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media not aggressive for materials
valve parts.
Specifications
Airtightness class
Class "A" GOST 9544-2015
Diameter
350 mm
Nominal pressure
25 MPa
Construction length
730 mm
Weight
235 kg
Connection type
Welded
Aisle
Standard
Flange for mounting the actuator
with flange
Execution
ordinary
Enclosure materials
Steel 20/09G2S/12Cr18Ni10T
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
25 year
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
