Available for Import

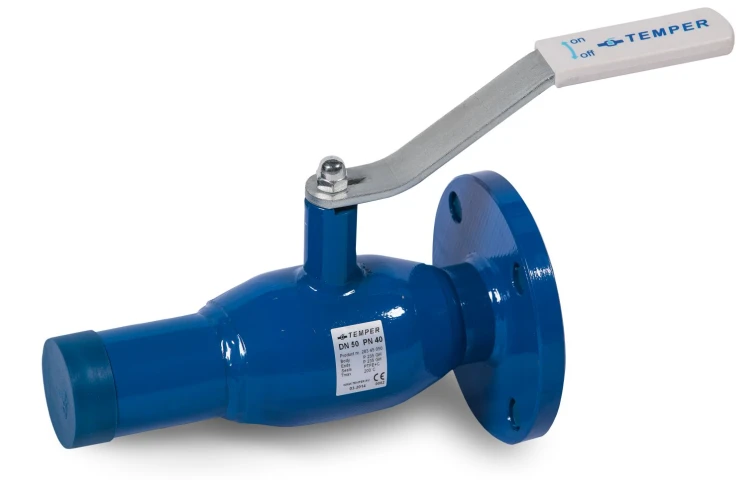

Standard Passage Ball Valve 289 Combined for Efficient Fluid Control
Manufacturer:
TEMPER LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Connection type:
flanged/welded
Working Environment:
District heating networks, oil products, fuels and lubricants,
other liquids free from abrasive contaminants.
Natural gas, liquefied petroleum gas, gaseous media not aggressive towards
valve materials.
flanged/welded
Working Environment:
District heating networks, oil products, fuels and lubricants,
other liquids free from abrasive contaminants.
Natural gas, liquefied petroleum gas, gaseous media not aggressive towards
valve materials.
Specifications
Airtightness class
Class "A" GOST R54808-2011
Diameter
SBVVBG mm
Nominal pressure
40 MPa
Construction length
265 mm
Connection type
Combined
Aisle
Standard
Flange for mounting the actuator
without flange
Execution
ordinary
Enclosure materials
Steel 20/09G2S/12Cr18Ni10T
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
25 year
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
