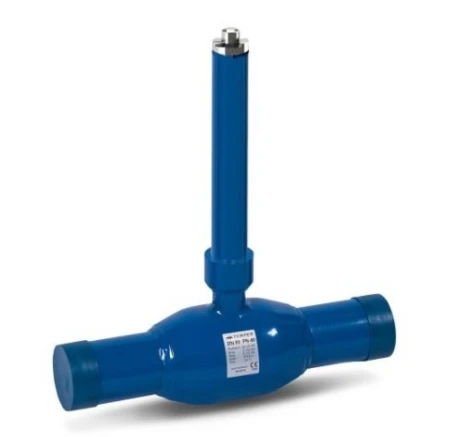

Standard Passage Ball Valve 482 with Extended Stem for Underground Installation, 48220125

Available for Import

Standard Passage Ball Valve 482 with Extended Stem for Underground Installation

Manufacturer: TEMPER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Full bore 492 ball valve with extended stem for underground installation welded, 49220080 Full bore 492 ball valve with extended stem for underground installation welded, 49220125 Full bore 492 ball valve with extended stem for underground installation welded, 49220200 Standard bore ball valve 482 with extended stem for underground installation welded, 48220250. Standard bore ball valve 482 with extended stem for underground installation welded, 48220300

Standard bore ball valve 482 with extended stem for underground installation welded, 48220200. Standard bore ball valve 482 with extended stem for underground installation, welded, 48220032. Full bore 492 ball valve with extended stem for underground installation welded, 49220100 Full bore 492 ball valve with extended stem for underground installation welded, 49220050. Full bore 492 ball valve with extended stem for underground installation welded, 49220250 Standard bore ball valve 482 with extended stem for underground installation welded, 48220100. Ball valve 492 full bore ball valve with extended stem for underground installation welded, 49220025 Full bore 492 ball valve with extended stem for underground installation welded, 49220150 Standard bore ball valve 482 with extended stem for underground installation welded, 48220065 Full bore 492 ball valve with extended stem for underground installation, welded, 49220040. Standard bore ball valve 482 with extended stem for underground installation welded, 48220500. Standard bore ball valve 482 with extended stem for underground installation welded, 48220080. Standard bore ball valve 482 with extended stem for underground installation welded, 48220040. Full bore 492 ball valve with extended stem for underground installation welded, 49220400. Full bore 492 ball valve with extended stem for underground installation, welded, 49220300. Standard bore ball valve 482 with extended stem for underground installation, welded, 48220025. Full bore 492 ball valve with extended stem for underground installation, welded, 49220032. Full bore 492 ball valve with extended stem for underground installation welded, 49220065. Standard bore ball valve 482 with extended stem for underground installation welded, 48220400 Standard bore ball valve 482 with extended stem for underground installation welded, 48220150.

Description

Connection type:

welded/welded

Working Environment:

District heating networks, oil products, fuels and lubricants,
other liquids free from abrasive contaminants.
Natural gas, liquefied petroleum gas, gaseous media not aggressive towards
valve materials.

Specifications

Airtightness class

Class "A" GOST R54808-2011

Diameter

125 mm

Nominal pressure

25 MPa

Construction length

330 mm

Connection type

Welded

Aisle

Standard

Flange for mounting the actuator

without flange

Execution

underground

Enclosure materials

Steel 20/09G2S/12Cr18Ni10T

Minimum temperature, up to

-40 °C

Maximum temperature, up to

200 °C

Service life, at least

25 year

Warranty period

3 year

Warranty period, cycles

10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
