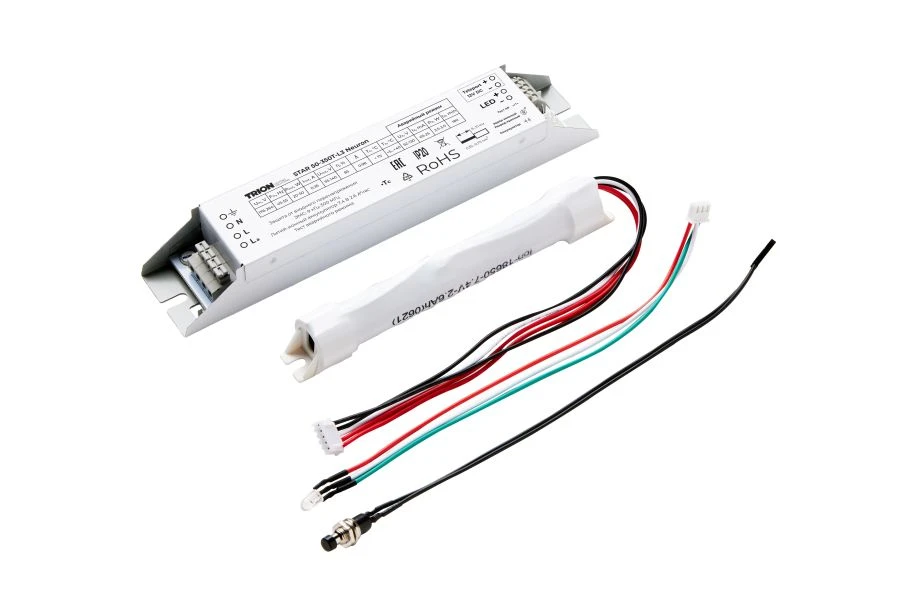

STAR 50-350T-L3 Neuron Power Supply for LED Lighting Applications

LED Power Supplies

Manufacturer: TRION LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The power supply STAR 50-350T-L3 Neuron is designed for realisation of working and emergency lighting on the basis of special LED luminaires with output power up to 50 W and output current 350 mA. It is designed for operation with supply network voltage 176-264 V AC. The key purpose of the power supply is to provide working lighting in normal (normal) mode, and emergency lighting for at least 3 hours in case of failure of the working network (emergency situation).

Specifications

Connection type

Quick-clamping terminal blocks

Galvanic isolation

~1.5 kV 50 Hz

Electrical safety class

Electromagnetic compatibility and electrical safety

Conforms to the requirements of ?? ?? 004/2011 "On safety of low-voltage equipment"

Light flux ripples, %

less than 1

EFFICIENCY, %

87 %

Degree of enclosure protection

IP20 according to GOST 14254 (IEC 60529)

Operating temperature, C

5...40 °C

MTBF, hours

50000

Input overvoltage protection, V

295...420 V

Resistance to high energy microsecond pulses

1 kV (L-N), 2 kV (L-PE, N-PE)

Input voltage range, V

176...264 V

Output current, A

0.35 A

Input power range, W

22...58 W

Overall dimensions of the source, mm

203 x 37.8 x 28

Output power range, W

20...50 W

Output voltage range, V

55...140 V

Source weight (set), g., (not more)

320 year

Power supply warranty period

5 year

Warranty period of the battery pack

2 year

Discharge time of the battery pack at 100% charge, min., (not less)

180

Output power range in emergency mode, W

3...3.5 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
