Static Three-Phase Energy Meter Milur 307S.52-GRR-2-D

Available for Import

Static Three-Phase Energy Meter Milur 307S for Accurate Energy Measurement

Electricity Meters

Manufacturer: MILUR IS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

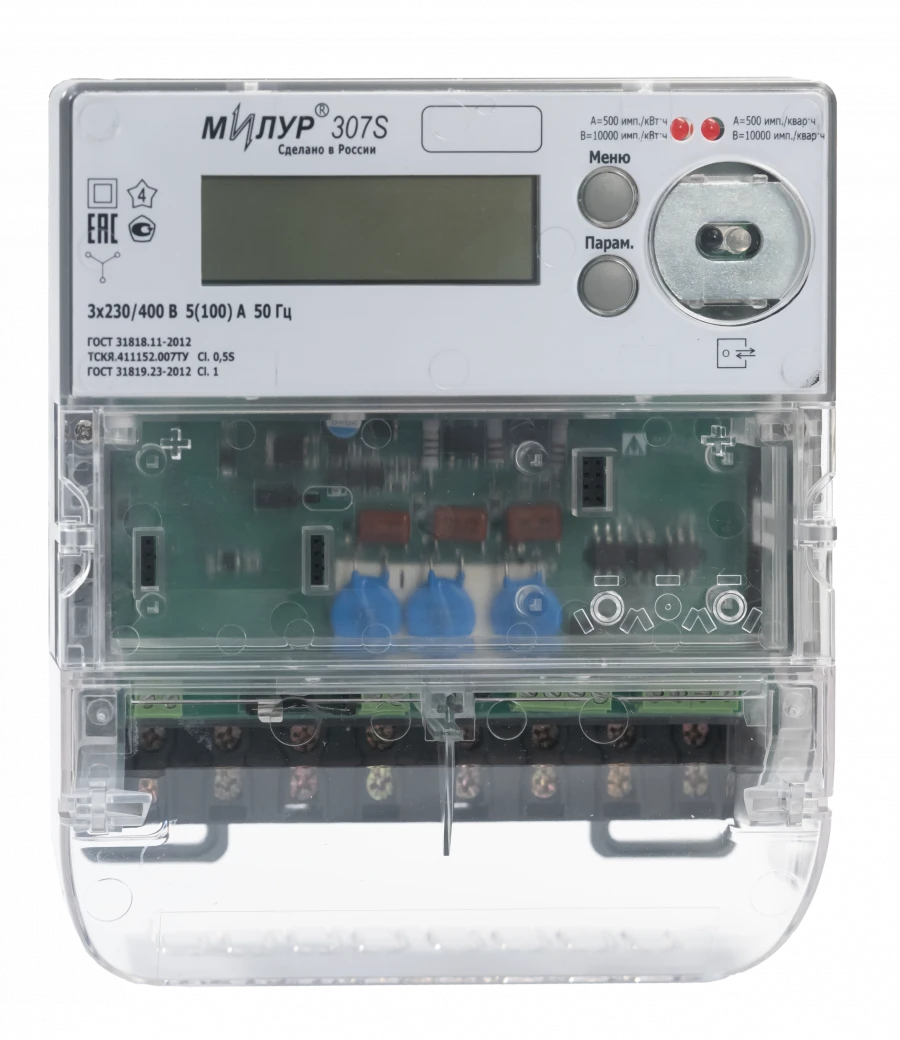

Milur 307S static three-phase electricity meter with SPODES protocol support is designed for metering active and reactive electricity consumption in three-wire and four-wire AC networks of 50 Hz frequency, bidirectional energy metering.

The metering device can operate both autonomously and as part of automated metering systems, recording electricity consumption and storing data in non-volatile memory.

The parameters are displayed on the liquid crystal display.

Data exchange with automated accounting systems or computer is carried out via GSM communication interface and two RS-485 data transmission interfaces according to Mi307 protocol.

The metering device is equipped with an opto-port.

Specifications

Nominal voltage

230...400 V

Rated current

5 A

Accuracy class

0,5S/1

Mounting method

To the screws

Maximum current

100 A

Maximum operating temperature

70 °C

Minimum operating temperature

-40 °C

Type of metered energy

Reactive, Active

Type of readout device

Electronic

Number of phases

Type

Multi-tariff

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
