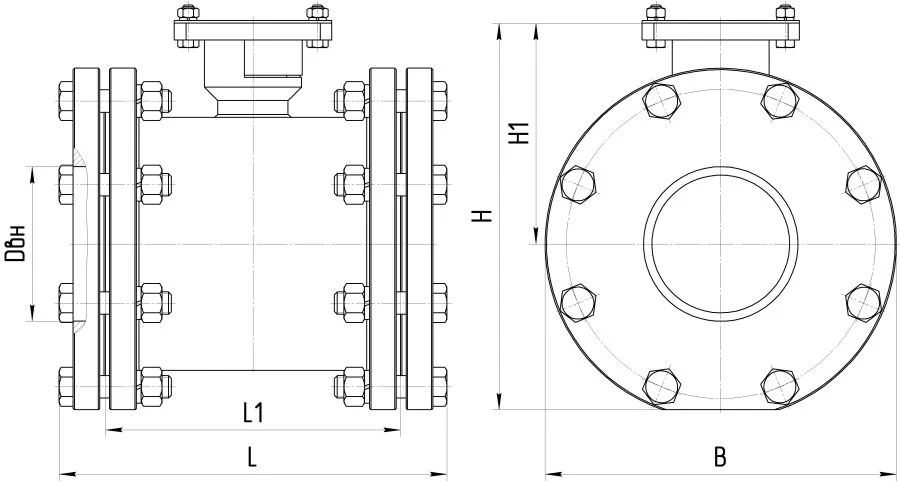

Steel Ball Valve for Sealing and Connection - AТЭК.491284.100

Ball Valves

Manufacturer:ATEK OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The steel ball valve is designed for hermetic separation (normally closed valve - NC) or connection (normally open valve - NO) of two pipeline sections by commands of control and protection systems. The valve is controlled by electric actuator or manual actuator installed on the valve. The tightness of the valve is class A of GOST 9544.

The valve is hermetically sealed in relation to the external environment. Connection to pipelines is welded. Welding is carried out with the help of mating flanges.

The presence of mating flanges provides quick removal of the valve without cutting out of pipelines.

Specifications

Type of product according to PP RF 616

Shut-off valves for process control (gate valves, cocks, stop valves, disk gates and other fittings)

Direction of the environment

Bilateral

Operating medium

Natural gas

Temperature, up to

150 °C

Nominal pressure, up to

1.6 MPa

Nominal diameter

100 mm

Full bore
