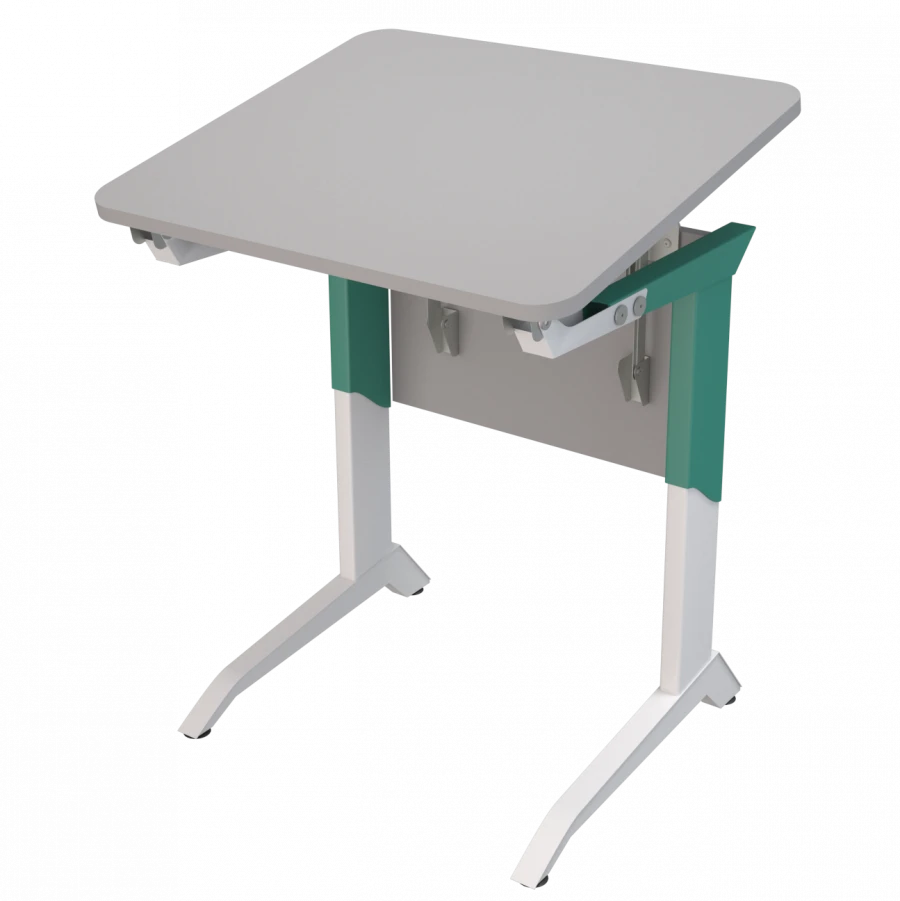

Student Desk FrPU 2r.1.3-5 for Educational Environments

The top of the frame is made of cold-rolled bent sheet 1.5mm.The first profile is U-shaped, 380mm long, located under the table top. The details of the mechanism are two brackets: 1) a U-shaped bracket, which is fixed directly to the table top through a 7.5mm diameter hole with a m6x12 screw.It also has two coaxial holes with a diameter of 8.5 mm, through which passes a screw m8x60, which connects the bracket bracket with the frog bracket and fixed with a nut M8.2) the frog bracket has a U-shape with elongated shelves with two holes 8.5 mm each to connect with the first profile.2) hooks. hooks.

NIZ: made of cold-rolled profile pipe 40x40x1.5 and cold-rolled sheet, thickness 1.5 mm. The profile and cover are welded together to form a box with no visible welds. To the base of the rack are welded two paired profile pipes 40x40x1.5 forming a cross-section of 40x80.Table top LDFP 22mm.tsarga of LDFP 16mm.Coating frame powder paint.
