Available for Import

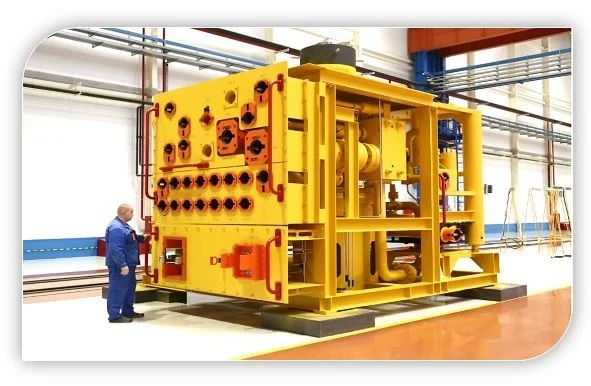

Submersible Fountain Fitting for Fluid Regulation and Chemical Injection
Manufacturer:
NZ 70-LETIYA POBEDY OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Subsea fountain valves are designed to regulate the flow rate of formation fluid, to ensure the stability of the produced formation fluid flow by supplying chemical reagents, to measure the technological parameters of the produced fluid, to perform temporary killing of the well for maintenance and repair.
Specifications
Weight, not more
55000 kg
Service life, at least
30 year
Dimensions
5115x4295x4300 mm
Placement of equipment
Underwater
Calculated depth of installation
500 m
External environment
3,5 %
Ambient temperature above water
- 40 to + 50 °C
Internal medium (extracted fluid)
Gas, gas condensate
Working pressure of fluid
69000000
Calculated fluid pressure
103500000
Calculated fluid temperature
- 18 to +121 °C
Working pressure of the control system of shut-off and regulating valves
34500000
Working pressure for downhole equipment control lines
69000000
Nominal inner diameter of FA and CMM extraction line
130 mm
Seismicity of operation areas on 12-point scale of seismic intensity MSK-64 according to GOST 30543.1
9 points
Construction area
seawater
Dimensions (DxWxH), mm
5115x4295x4300
Limits of permissible basic absolute error of measurements
no
Operating time without recharging from the battery, not less than
1
PC communication interface
no
Operating temperature
-40...50 °C
Degree of protection against external influences
9
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
