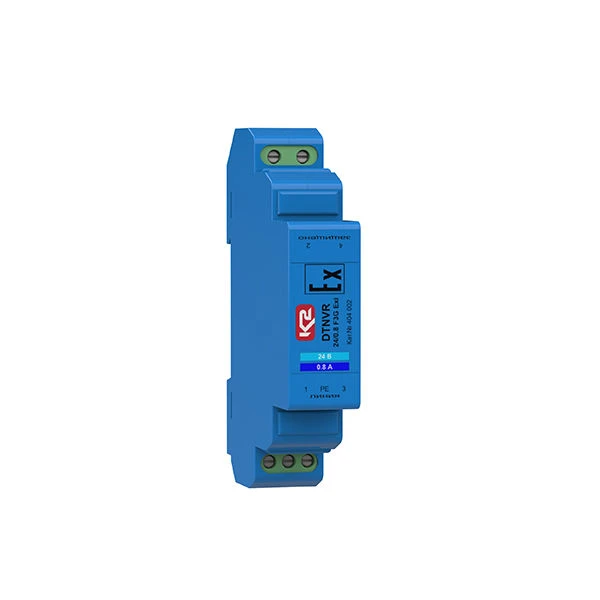

Surge Protection Device DTNVR 24/0.8 F3G Exi, Cat. No. 404 002 Available for Import

Surge Protection Device DTNVR 24/0.8 F3G Exi for Industrial Equipment Protection

Surge Protection Devices
Manufacturer: HAKEL OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

DTNVR 24/2 F3G Exi surge protection device, Cat.No.404 003.

Description

Explosion-proof surge protectors of DTNVR 24/* F3G Exi series, TU 3428-002-79740390-2007 are designed to protect equipment of distributed networks of industrial automation equipment (ACS, ASKUE, etc.) from impulse overvoltages (lightning protection, protection from electrostatic discharges, etc.) coming from the side of intrinsically safe circuits within 1 - 2 lightning protection zones in accordance with GOST R IEC 62305-1-2010. Capable of passing the rated discharge current In (8/20)=7,5 kA, In (10/350)=2,5 kA. They are made in a plastic case with a lock for installation on a 35 mm DIN-rail.

Specifications

maximum operating current (max.
0.8 A
Rated operating voltage Un
24 V
Housing material
Polyamide PA6
Weight
56 year
Dimensions, WxWxH
18x91x65 mm
Explosion protection type marking
0Ex ia IIC T6 Ga X
Provides explosion protection of the type
Intrinsically safe electrical circuit
Number of channels
1 pcs
