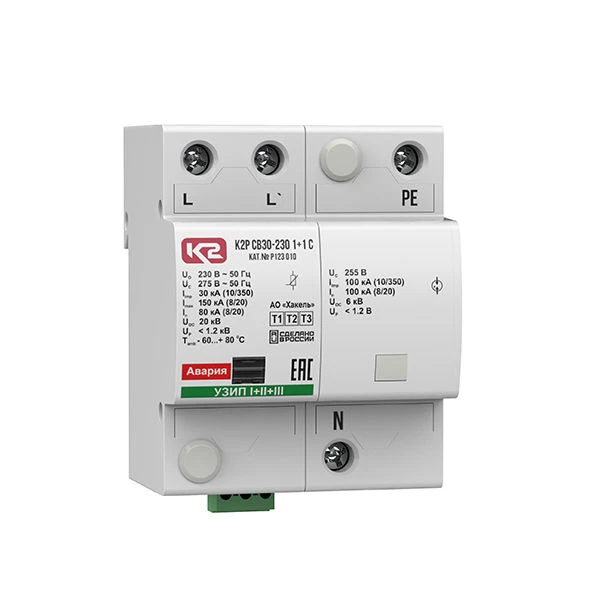

Surge Protection Device K2R SV30-230 1+1 C, Cat. No. R123 010

Available for Import

K2R SV30-230 Surge Protection Device for TN-S Networks

Surge Protection Devices

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Two-pole surge arresters of test class I, II, III combined type for networks with earthing system type TN-S. Uo = 230/300 V AC/DC. Iimp(L/N)(10/350)= 30 kA.

Iimp(N/PE)(10/350)= 100 kA. With remote signalling. Installed within 0A(V) - 2 lightning protection zones (in accordance with GOST R IEC 62305-1 and SO-153-34.21.122).

They are intended for protection of equipment in low-voltage power distribution systems with air or cable power input. The device is mounted on a 35 mm DIN-rail by means of a special latch on the rear side of the case.

Specifications

Operating temperature

-60...80 °C

Number of channels

1 pcs

Dimensions, WxWxH, mm

99x72x66

Combined wave test pulse (1.2/50), Uoc

20 kV

Rated discharge current (8/20), In

80000 A

Maximum discharge current (8/20), Imax

150000 A

Weight

460 year

Housing material

Polyamide PA6, UL94 V-0

Protection voltage level at Iimp (10/350)

1200 V

Nominal system voltage

230 V

Type of protection

L/N, N/PE

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
