Surge Protective Device GIP 1.4/250M PoE+ RJ/RJ (LT) for Equipment Protection

UZIP series GIP 1.4/250M PoE+ */RJ (LT), TU 3428-002-79740390-2007 are designed for protection against impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) of the equipment of structured cable networks of Cat.5e and Cat.6 with Ethernet interfaces of 1000BASE-T (IEEE 802.3ab-1999), 10GBase-T (IEEE 802.3an-2006) standards within 0B - 2 lightning protection zones in accordance with GOST R IEC 62305-1. Support power over data (PoE, PoE+) technology. They are installed in rooms, cabinets, 19-inch racks using specialised PSK 10 panels.

They are produced for rated operating voltage Uo= 6 V (data); 48 V (power supply); rated current IL= 3 A. Capable of carrying rated discharge current In(8/20) up to 1 kA. Data transfer rate 1/10 Gbit/s.

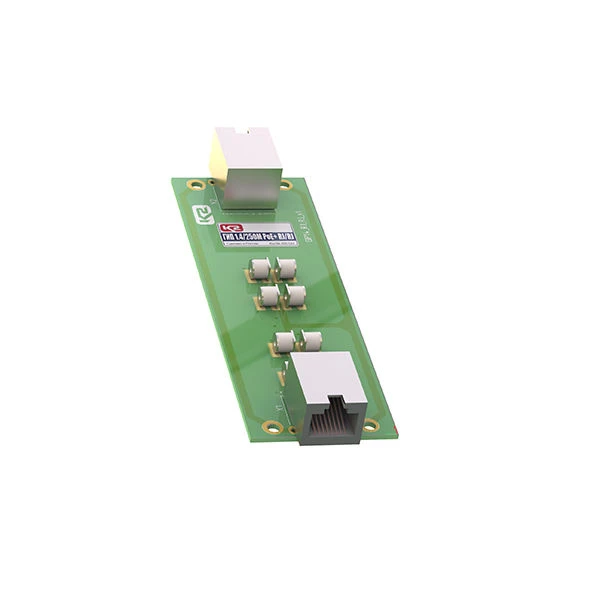

Made in the form of a printed circuit board, IP20 when mounted in a panel.
