Surge Protective Device K2R SV30-230 C, Cat. No. R123 001

Available for Import

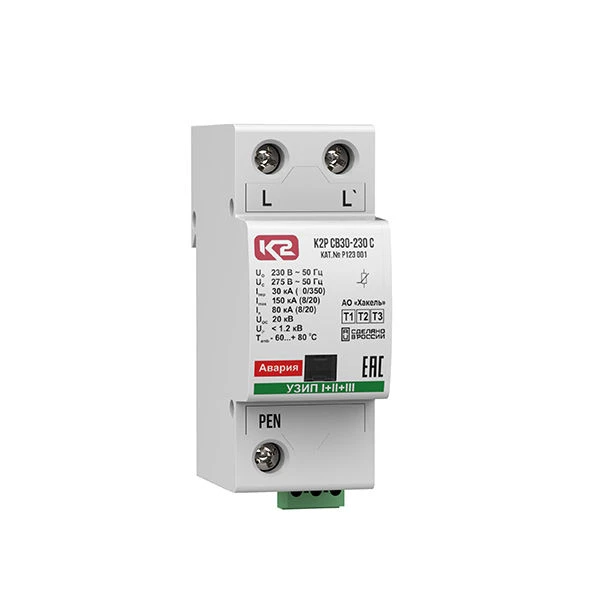

Surge Protective Device K2R SV30-230 C for TN-C Network Protection

Surge Protection Devices

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Single-pole surge arresters of test classes I, II, III of the limiting type for networks with earthing system type TN-C. Uo = 230/300 V AC/DC. Iimp(10/350)= 30 kA.

With remote signalling. Installed within 0A(V) - 2 lightning protection zones (in accordance with GOST R IEC 62305-1 and SO-153-34.21.122). They are intended for protection of equipment in low-voltage power distribution systems with air or cable power input.

The device is mounted on a 35 mm DIN-rail by means of a special latch on the rear side of the case.

Specifications

Number of channels

1 pcs

Operating temperature

-60...80 °C

Type of protection

L/N, L/PEN, L/PE

Nominal system voltage

230 V

Protection voltage level at Iimp (10/350)

1200 V

Housing material

Polyamide PA6, UL94 V-0

Weight

300 year

Maximum discharge current (8/20), Imax

150000 A

Rated discharge current (8/20), In

80000 A

Combined wave test pulse (1.2/50), Uoc

20 kV

Dimensions, WxWxH, mm

99x36x66

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
