SV32-03/04M Thermal Jacket for Cameras Available for Import

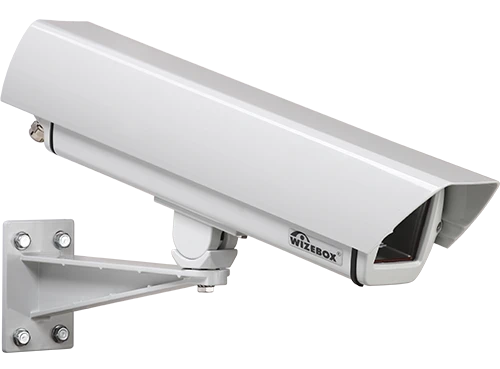

SV32-03/04M Thermal Jacket for Cameras - Protection in Cold Weather

Radio Equipment Parts
Manufacturer: SAROVINTECH LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Thermal cover SV32-03/04 ?????????? SV32-03/04MNR Thermal housing SVS32P Thermal cover SV32P-03/04 Thermal cover EL320-12V

Description

Purpose: Protects the camera with fixed or variable lens from unfavourable environmental influences in cold climates. Type: STANDARD.Series: 320. Type of additional devices for signal conversion and transmission, lightning protection: Video signal transmission device for a distance of up to 1000 m via "twisted pair" (manufacturer - SPETSVIDEOPROEKT).

Diameter of cables for connecting the thermocouple 4-8 mm. The weight of the thermocoat assembly is 3.9 kg. Maximum load on the bracket 50 kg with a reserve factor of 2.6.Coating: powder paint, polyester, colour: light grey (RAL7035).Housing material: extruded aluminium; aluminium die casting.Glass: special polished, without optical distortion.Fasteners: stainless steel.Material sealing gaskets: Armlen.Material cable glands: polyamide.

Specifications

Maximum power consumed by the thermal enclosure
17 W
Input voltage supplied to the enclosure
~220V or ~24V
Dimensions of usable volume
230x73x66mm
Housing material
Extruded aluminum
Environmental protection class
IP66
Operating temperature range
-52...40 °C
