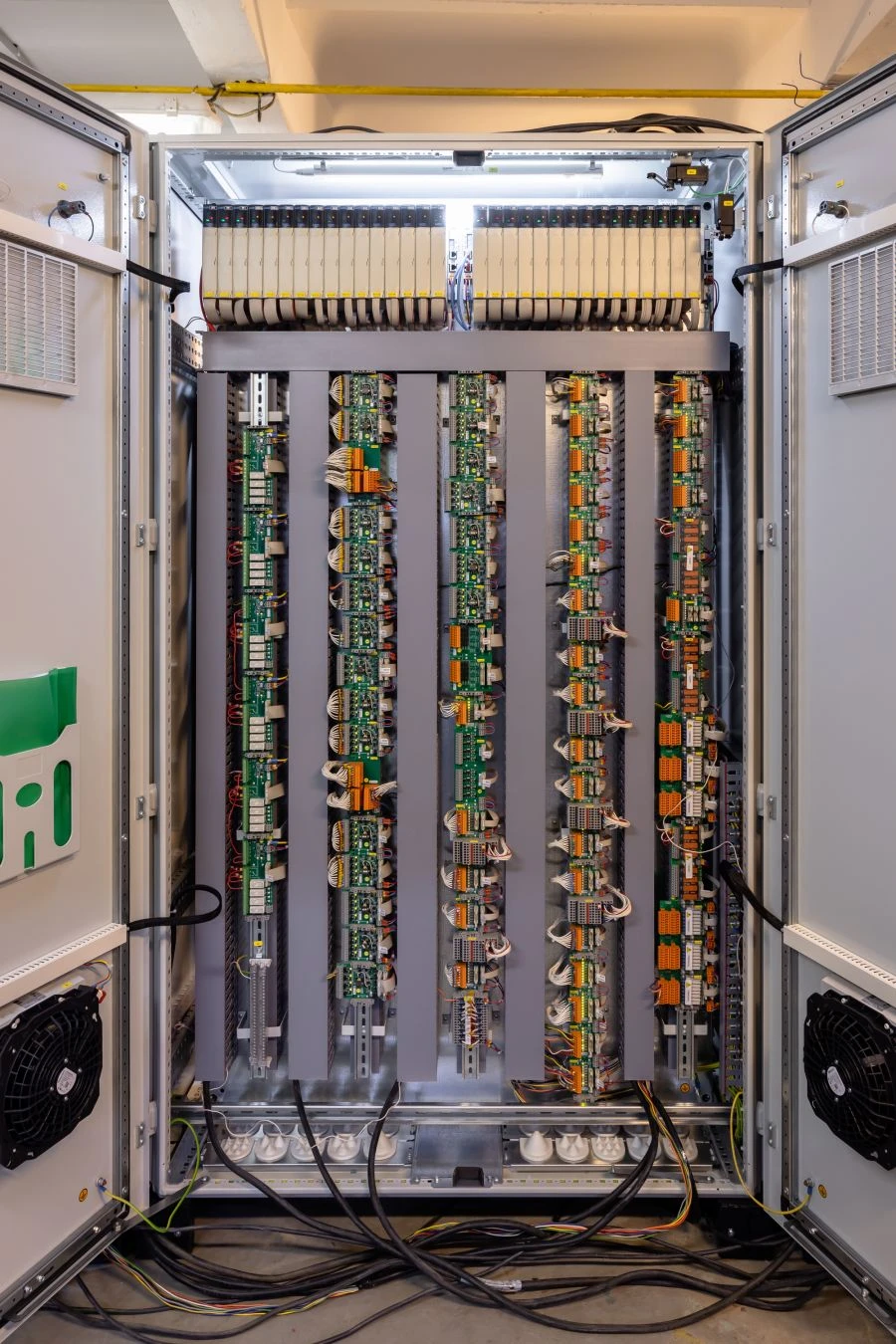

TEKON Type SHKA-U-1500 Technical Complex Cabinets for Information Systems
Manufacturer:
MODULE LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
"Cabinets of software and hardware complexes TECON type SHKA-U-1500", are designed:
- for use as a technical means as part of information-measuring and control systems "PTC TECON", software and hardware complexes TECON, automated process control systems (APCS) at industrial enterprises, nuclear fuel cycle facilities, including nuclear power plants (NPPs) in normal operation systems of safety class 3H according to NP-016-05, NP-026-16, which provide measurement, operational control of technological parameters, process equipment control
- for use as a technical means as part of information-measuring and control systems "PTC TECON", software and hardware complexes TECON, automated process control systems (APCS) at industrial enterprises, nuclear fuel cycle facilities, including nuclear power plants (NPPs) in normal operation systems of safety class 3H according to NP-016-05, NP-026-16, which provide measurement, operational control of technological parameters, process equipment control
Specifications
Type
low-voltage complete devices SHKA-U-1500
Climatic version
UHL4 and UHL1 according to GOST 15150-69
Temperature class
ambient air temperature - without ventilation: from + 1 to + 50 C, with ventilation: from + 1 to + 60 C
Degree of protection
according to GOST 14254-2015 must be not lower than IP54 or IP20
Housing material
Constructed as a metal frame of specialised profile with collapsible side walls, roof, with or without plinth, front and rear doors.
Material of manufacture
metal frame
Color
RAL 7035
Explosion protection
explosion protection level "Ga" according to GOST 31610.0-2014 (IEC 60079-0:2011) and belong to subgroup IIC according to GOST 31610.0-2014 (IEC 60079-0:2011)
Height
2000 mm
Width
800...1200 mm
Type of explosion protection
"i" (intrinsically safe electrical circuit) with explosion protection level "ia" according to GOST 31610.11-2014 (IEC 60079-11:2011)
Modules
Armoured glass
Material
Metal case
Current capacity
2.5.1.4 Emission of harmonic components of the consumed current from the AC electrical network must meet the norms of emission of harmonic components of the consumed current, established in GOST 30804.3.2-2013 (section 7 class A)
Size; mm
800-1200/2000/400-800 mm
Mark
TECON
Equipment
Multifunctional controller MFK1500, TCC Ex series intrinsic protection barriers, Uninterruptible power supplies, Cabinets
Assignment
must provide the following main functions: constant round-the-clock operation in all modes of normal operation; control of technological parameters and signalling of their deviations; remote control of the equipment.
Length
2000 mm
Degree of protection against external influences
must correspond to GOST 17516.1-90 for mechanical design group M13 or M 6 (to be specified in TOR)
By explosion protection
Armoured glass
Frequency
SBVVBG
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
