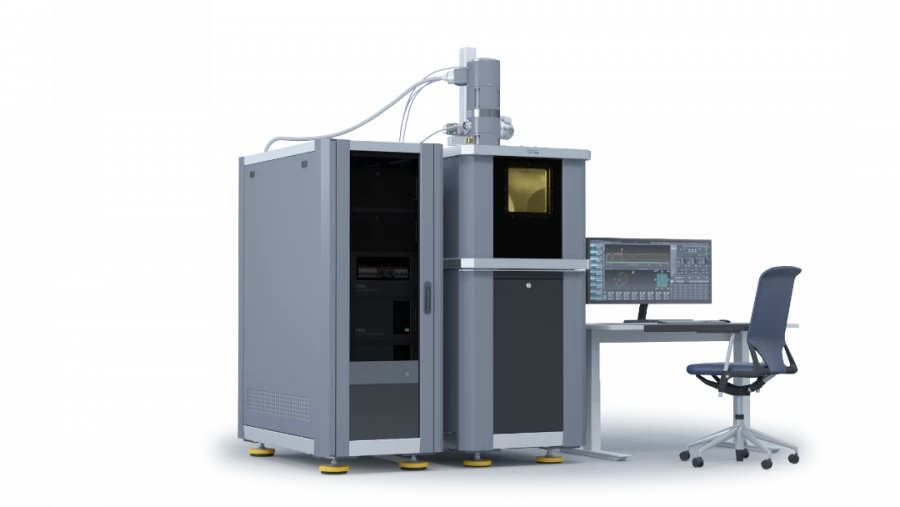

TETA 6E250 Electron Beam Welding Machine for Welding, Soldering, and Thermal Treatment
Manufacturer:
TETA LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The unit is used for welding, brazing and heat treatment of small parts. It has a wide range of use in industry, in scientific and educational institutions.
THE UNIT IS EQUIPPED WITH:
- Manipulator for welding one/few parts in one work cycle;
- Optical video surveillance system, co-axial to the beam;
- Reflected electron observation system;
- Automatic pointing and focusing;
- Electron-beam gun with direct/indirect filament cathode or plasma cathode;
- Vacuum pumps from the world's leading manufacturers.
THE UNIT IS EQUIPPED WITH:
- Manipulator for welding one/few parts in one work cycle;
- Optical video surveillance system, co-axial to the beam;
- Reflected electron observation system;
- Automatic pointing and focusing;
- Electron-beam gun with direct/indirect filament cathode or plasma cathode;
- Vacuum pumps from the world's leading manufacturers.
Specifications
Type of product according to PP RF 616
High-vacuum electron-beam installations
Power
6 kW
Operating voltage
60000 V
Beam power
6 kW
Internal dimensions of the vacuum chamber
500×500×500 mm
Accelerating voltage
60 kV
Maximum beam current
100 mA
Beam current stability
0.1 mA
Beam deflection angle
±7°
Cathode type
Direct filament, Indirect filament
Pumping time to operating vacuum
2-10 min
Pump types
Turbomolecular + Rotor Plate
Manipulator, number of axles
4 pcs
Dimensions of the manipulator table
160×200 mm
Movement in X, Y, Z axes
250, 250, 300 mm
Travel speed in X, Y, Z axes
0.1 - 40 mm/sec
Faceplate diameter
160 mm
Faceplate aperture
80 mm
Rotation speed
0.1 - 60 rpm
Load capacity of the manipulator
SBVVBG kg
Cooling system
Liquid, built-in
Pneumatic system
built-in
Power supply voltage
3 phases, 380 V, 50 (60) Hz
Weight
1100 kg
Mark
THETA 6E250
Type
Electron beam welding unit
Dimensions
3200x2800 mm
Equipment
- Manipulator for welding; - Optical video surveillance system; - Automatic pointing and focusing; - Electron-beam gun with direct/convex cathode or plasma cathode; - Vacuum pumps.
AC mains supply voltage
380 V
Frequency of supply voltage
50...60
Width
2800 mm
Length
3200 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
