Available for Import

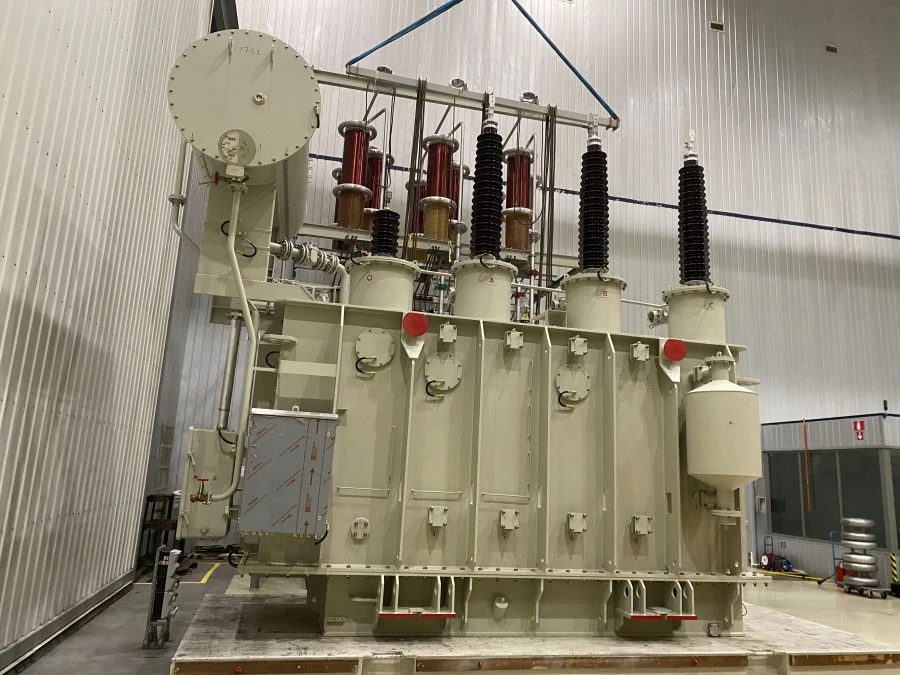

Three-Phase Oil Power Transformer TDN-40000/110 for Reliable Power Distribution
Manufacturer:
Voronezh Transformer LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST-12965-85.
Rated power: 40000 kVA; Rated current of HV winding: 200,8 A, rated current of LV winding: 1154,7 A; Rated voltage of HV winding: 115 kV, rated voltage of LV winding: 20 kV; Number of phases: 3; Number of windings: high voltage windings, low voltage windings; Dielectric type: transformer oil.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST-12965-85.
Rated power: 40000 kVA; Rated current of HV winding: 200,8 A, rated current of LV winding: 1154,7 A; Rated voltage of HV winding: 115 kV, rated voltage of LV winding: 20 kV; Number of phases: 3; Number of windings: high voltage windings, low voltage windings; Dielectric type: transformer oil.
Specifications
Type of insulation
Oil
Possibility of regulation under voltage
Armoured glass
Transformer type
Reducing
Number of transformer phases
Three-phase
Number of windings
Double-winding
Rated power
40000
Nominal voltage
20
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
