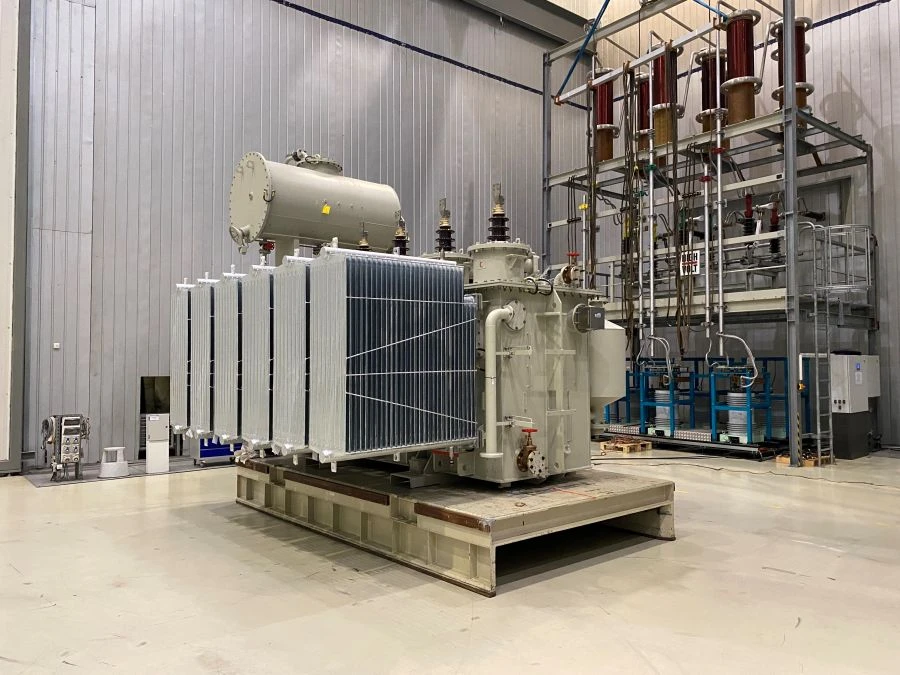

Three-Phase Oil Power Transformer TMN-10000/10 for Reliable Energy Conversion

Functional purpose: transformation by electromagnetic induction of one or several AC systems into one or several other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 11920-85.
Rated power: 10000 kVA; Rated current of HV winding: 549,9 A, rated winding current; Rated current of LV winding: 916,4 A; Rated voltage of HV winding: 10,5 kV, rated voltage of LV winding: 6,3 kV; Number of phases: 3; Number of windings: high voltage winding, low voltage winding; Dielectric type: transformer oil.
