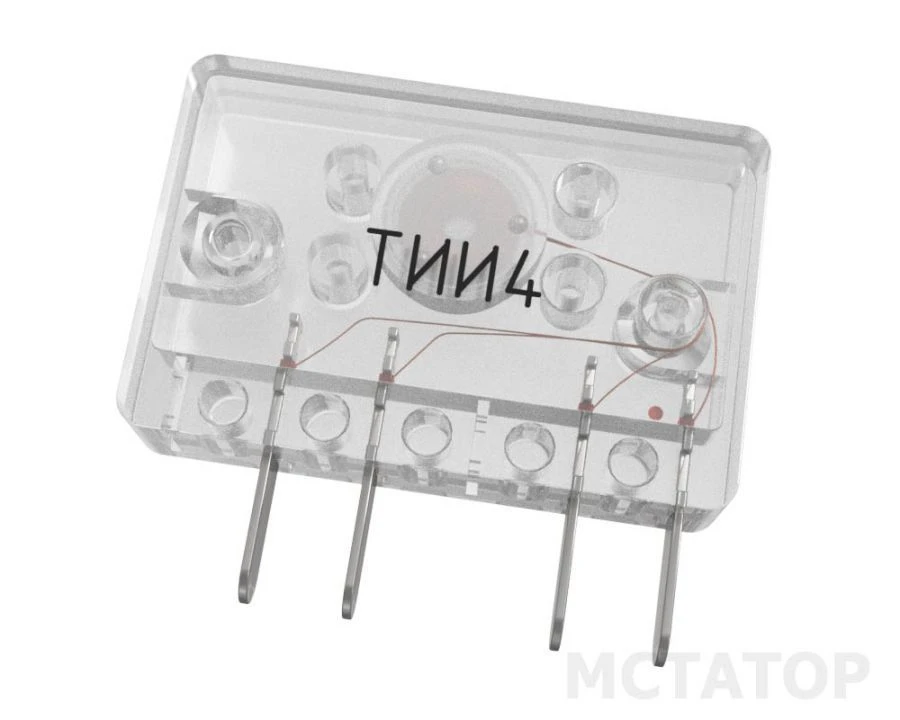

TII4 Type Pulse Transformers for Hybrid Film Circuits and Flat Modules
Manufacturer:
PJSC "MSTATOR"
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
TII4 type pulse transformers of open design are intended for application in hybrid-film circuits and in flat modules (microcircuits) with operating voltage up to 24V and pulse duration product on input voltage from 0,8 to 50,0 µs?V. Quality category "VP" and "OS".
Specifications
Product of pulse duration by input pulse voltage
0.8 to 50.0(×10^-6)
Primary winding inductance, not less than
0.08 to 5(×10^-3)
Capacitance between primary and each secondary winding, not more than
15 to 120(×10^-12)
Scattering inductance, not more
0.7 to 20(×10^-6)
Electrical insulation strength: DC voltage
150 V
Insulation resistance, not less
500 (×10^6) ohm
Magnetizing current, not more
10 (×10^-3) A
