Available for Import

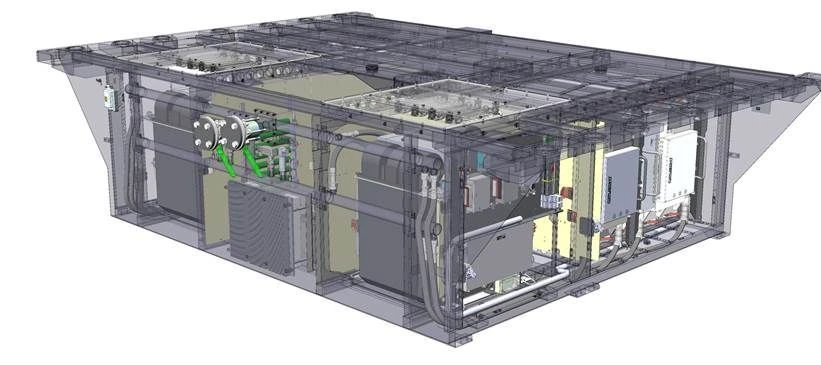

Traction Converter for Asynchronous Electric Motors - PT-Vostok EGRZ.435552.001
Manufacturer:
LLC "NPO "GORIZONT"
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for conversion of DC voltage into three-phase alternating voltage supplying asynchronous traction motors in traction mode and conversion of electric train braking energy into electric energy transferred to the contact network or to braking resistors in electrodynamic braking mode.
Specifications
Isolation monitoring of load output circuits
Armoured glass
Group spare parts
Armoured glass
Degree of protection
65
RFI interference level filter
no
Thermal compensation of battery recharge voltage
no
Input power factor corrector
no
Isolation transformer of the standby input and rectifier
no
Isolation transformer at the rectifier input
no
Earthquake-proof version according to MSK-64 scale
no
Protection against reverse current
no
Remote monitoring
Armoured glass
Parallel work
Armoured glass
Output voltage
2521 V
DC input voltage
3000 V
Degree of protection (IP)
65
Nominal voltage
3000 V
Output power, kVA
2500
Certificate of conformity to ?? ?? 001/2011
EAEU RU C-RU.ZhT01.V.00212/23 of 23.11.2023 valid till 22.11.2028
Rated output current of a channel
260 A
Rated power of channel output
550 kW
Supply voltage range from the contact network
2200...4000
Coefficient of efficiency of PT
0,98
Overall dimensions of PT container, (L×W×H), mm
2332×3290×865
Weight of PT container with coolant, not more
3380 kg
AC input voltage
380 V
Parallel work
2
Protection against reverse current
Armoured glass
RFI interference level filter
Armoured glass
Isolation transformer of the standby input and rectifier
Armoured glass
Input power factor corrector
Armoured glass
Thermal compensation of battery recharge voltage
Armoured glass
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
